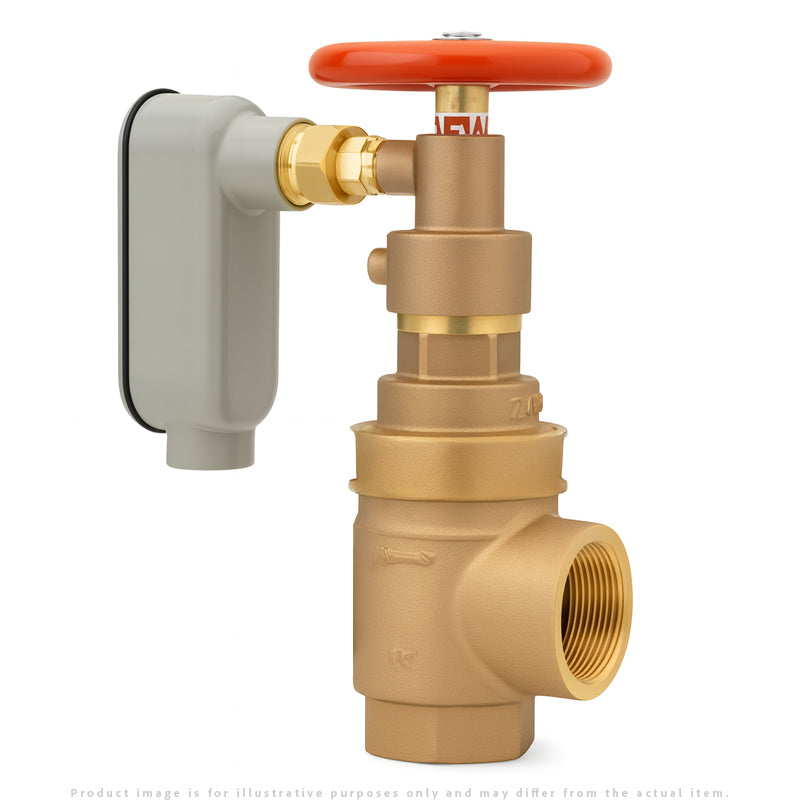

Zurn Wilkins ZW4104SS Pressure-Tru® 1-1/2" Pressure Reducing Fire Sprinkler Control Valve, Integral Supervisory Switch

Zurn WilkinsSKU: ZUR-ZW4104SS-J

Inlet - Outlet Connection Type: 1-1/2" FNPT x 1-1/2" FNPT
Bonnet Type - Max Inlet Pressure: J Bonnet - 400 psi
Finish: Bronze (Standard)
Price:
Sale Price$ 35,193.00 MXN
Description

Zurn Wilkins ZW4104SS Pressure-Tru® 1-1/2" Pressure Reducing Fire Sprinkler Control Valve, Integral Supervisory Switch

Zurn Wilkins ZW4104SS Pressure-Tru® 1-1/2" Pressure Reducing Fire Sprinkler Control Valve, Integral Supervisory Switch.

Features & Benefits:

  • Non-field adjustable, factory set only
  • Factory installed supervisory switch
  • 1-1/2" female NPT inlet and female 1-1/2" NPT outlet threads
  • Available with Grooved inlet and outlet, or threaded inlet and outlet

Application:

The Pressure-Tru™ ZW4104SS Series Pressure Reducing Valve is listed as a floor control valve, an indicating valve, and a check valve in automatic sprinkler systems as well as a standpipe valve for CLASS II systems. Regulates pressure under both flow and no-flow conditions. The valve has a listed supervisory switch built in. Suitable for indoor / outdoor use. Tamper resistant housing can be rotated for easy wiring switch rated 3 amps @ 125 VAC. Normally open contacts are standard.

Standards Compliance:

  • UL® Listed
  • C-UL® Listed
  • California State Fire Marshall Listed

Product Features:

Sizes: 1-1/2"
Maximum Inlet Pressure: 400 psi
End Connections: FNPT ANSI B1.20.1
Grooved AWWA C606
Pressure Adjustments: Factory Set

Product Materials:

Castings / Internals: Cast bronze ASTM B 584
Elastomers: Buna Nitrile (FDA Approved)
EPDM (FDA Approved)

Technical Downloads:
