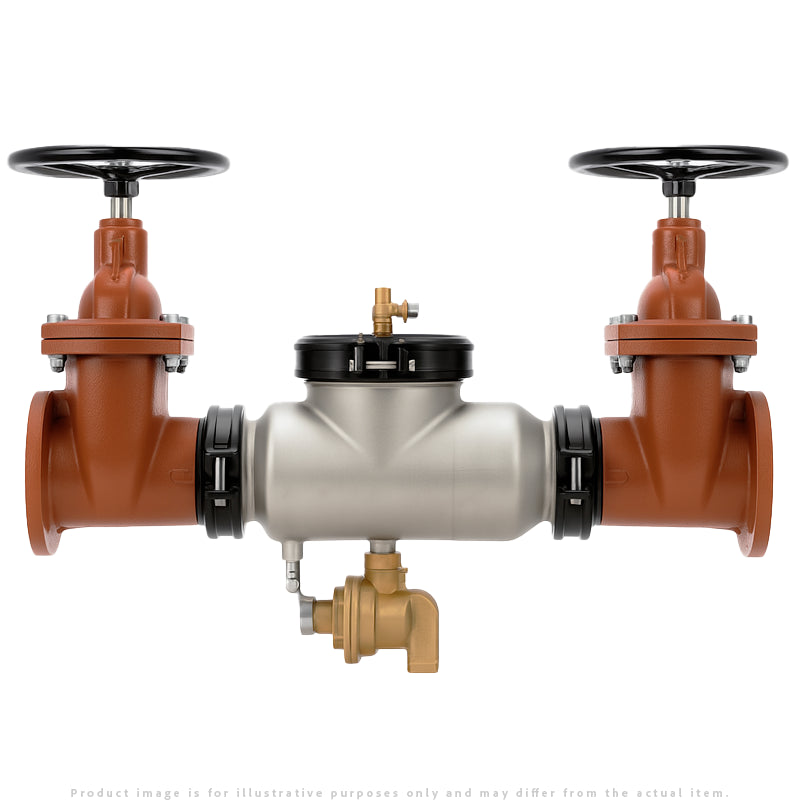

Zurn Wilkins 8" 375AST RPZ Backflow Preventer | Stainless Steel, NRS Gate Valves.
Product Overview:
Engineered for municipal and commercial infrastructure, the Zurn Wilkins 8" 375AST RPZ Backflow Preventer safeguards large potable water systems against dangerous backpressure and backsiphonage. It features a corrosion-resistant stainless steel body, high-capacity flow path, and field-serviceable components for long-lasting, code-compliant performance.
Features & Benefits:
-
Oversized capacity for mainline protection
-
RPZ configuration with dual check valves and relief zone
-
Stainless steel housing resists aggressive water conditions
-
NSF 61 & 372 compliant for potable use
-
Full-port NRS gate valves offer clear bore
-
Compact body for installation flexibility
-
Approved for retrofit and new installs
Specifications:
-
Size: 8"
-
Body: 304L Stainless Steel
-
Pressure: 175 PSI
-
Test Pressure: 350 PSI
-
Temp: 140°F Max
-
Ends: Grooved or Flanged
-
Certifications: ASSE 1013, FM®, UL®, NSF®, CSA®, IAPMO®
Installation Tips:
-
Install horizontally or vertically per code
-
Maintain 12–30" clearance above floor level
-
Pipe discharge line from relief valve to an approved drain
-
Always test after installation to ensure compliance
-
Review local jurisdictional backflow standards
FAQs:
Q: What makes the 375AST suitable for large-scale systems?
A: Its full-port design and stainless construction handle high flow and aggressive conditions.
Q: Can I replace legacy RPZ valves with this model?
A: Yes, this unit is retrofit-compatible and meets current code.
