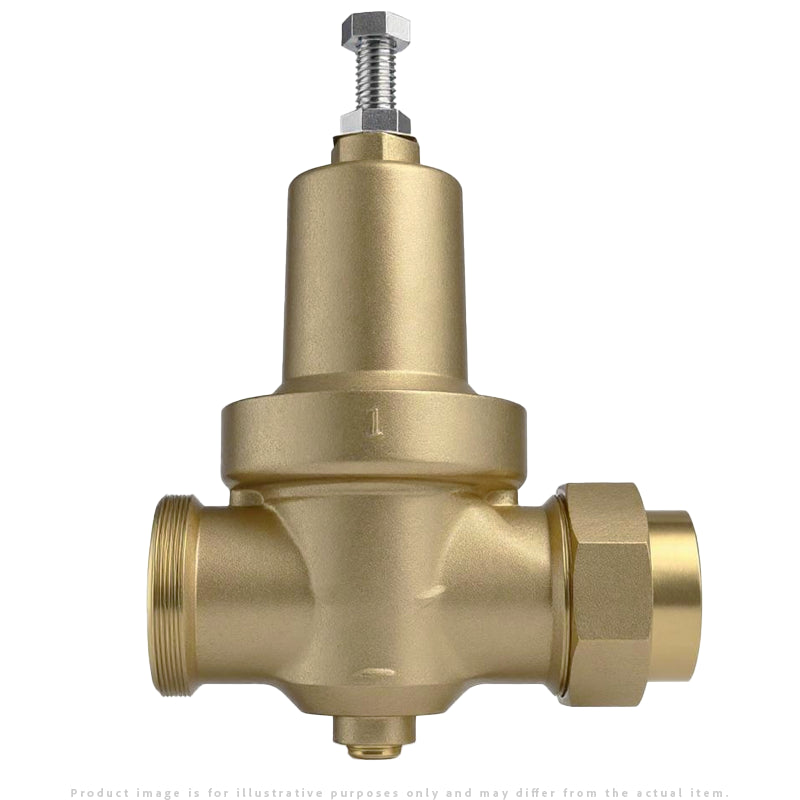

Zurn Wilkins 500XL3 Water Pressure Reducing Valve

Zurn WilkinsSKU: 1-500XL3

Connection Size (Single Union FNPT Inlet x FNPT Outlet): 1" [25mm]
Pressure Range: Standard (15 psi - 75 psi) Factory Set at 50 psi
Price:
Sale Price$ 5,210.00 MXN
Description
Zurn Wilkins 500XL3 Water Pressure Reducing Valve

Zurn Wilkins 500XL3 Water Pressure Reducing Valve.

Features & Benefits:

  • Sizes: 1", 1-1/4", 1-1/2" 2"
  • Maximum working water pressure - 400 psi
  • Maximum working water temperature - 140 F
  • Reduced pressure range - 15 psi to 75 psi
  • Factory preset pressure - 50 psi
  • Standard with single union FNPT inlet x FNPT outlet

Application:

Zurn Wilkins model 500XL3 designed for installation on potable water lines to reduce high inlet pressure to a lower outlet pressure. The patented integral venturi enables the valve to have best-inclass flow performance. The high flow capacity makes this device
most suitable for commercial plumbing systems and Industrial water lines. The direct acting integral by-pass design prevents buildup of excessive system pressure caused by thermal expansion (1" - 2"). The balanced piston design enables the pressure reducing valve to react in a smooth and responsive manner to changes in system flow demand, while at the same time, providing protection from inlet pressure changes. Includes a removable cartridge and corrosion resistant materials.

Standard Compliance:

  • ASSE® Listed 1003
  • cUPC® Listed
  • CSA® Certified B356
  • Meets the requirements of NSF/ANSI/CAN 61 and 372* *(Less than 0.25% Weighted Average Lead Content)

Technical Downloads:
