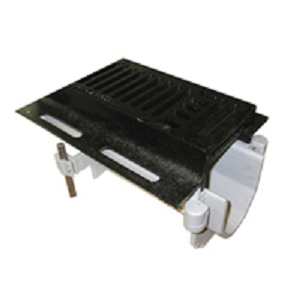

Zurn P6-FGF 6" Wide Ductile Iron Frame and Grate Class F.
Engineering Specification:
The Zurn P886-FGF Frame and Grate, Ductile Iron Frame and Grate, is 5-3/8 inches wide by 20 inches long, weighing 18.7 lbs per linear foot. The grate has an open area of 20.5 square inches per linear foot, DIN Rating of F, ANSI Rating of Special Duty, H-20 Load Rated, FAA Load Rated.
Note:
P6-FGF fits the following Zurn Trench Drain Systems: Z886 (4 Per Channel). NOTE: Channel Sold Separate.
Material: Ducile Iron |
DIN Rating: Class 'F' |
Weight: 18.7 lbs/ft. |
Open Area: 20.5 in2/ft. |
ANSI Rating: Special-Duty |
Application: Extra-Heavy-Duty Loads |
Slot Width / Hole Size: 3/8" |
ADA: NO |
H-20: YES |
FAA: YES |
Technical Documentation:
Zurn P6-FGF 6" Wide Ductile Iron Frame and Grate Class F Specification Submittal Sheet: Click Here.
Zurn P6-FGF 6" Wide Ductile Iron Frame and Grate Class F Linear Trench Drain System Technical Catalog: Click Here.
