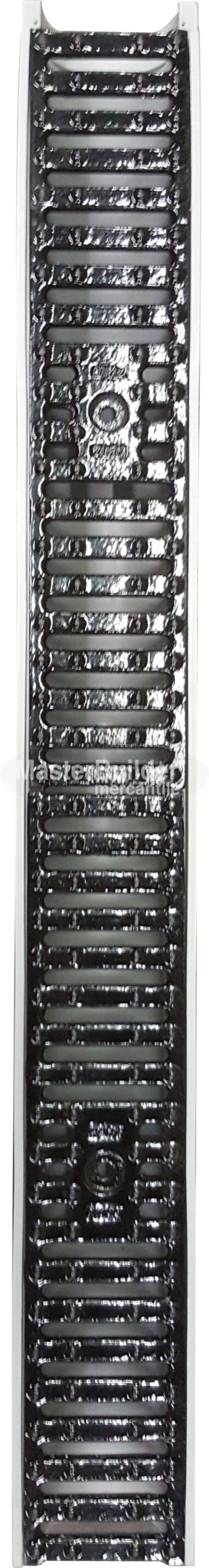

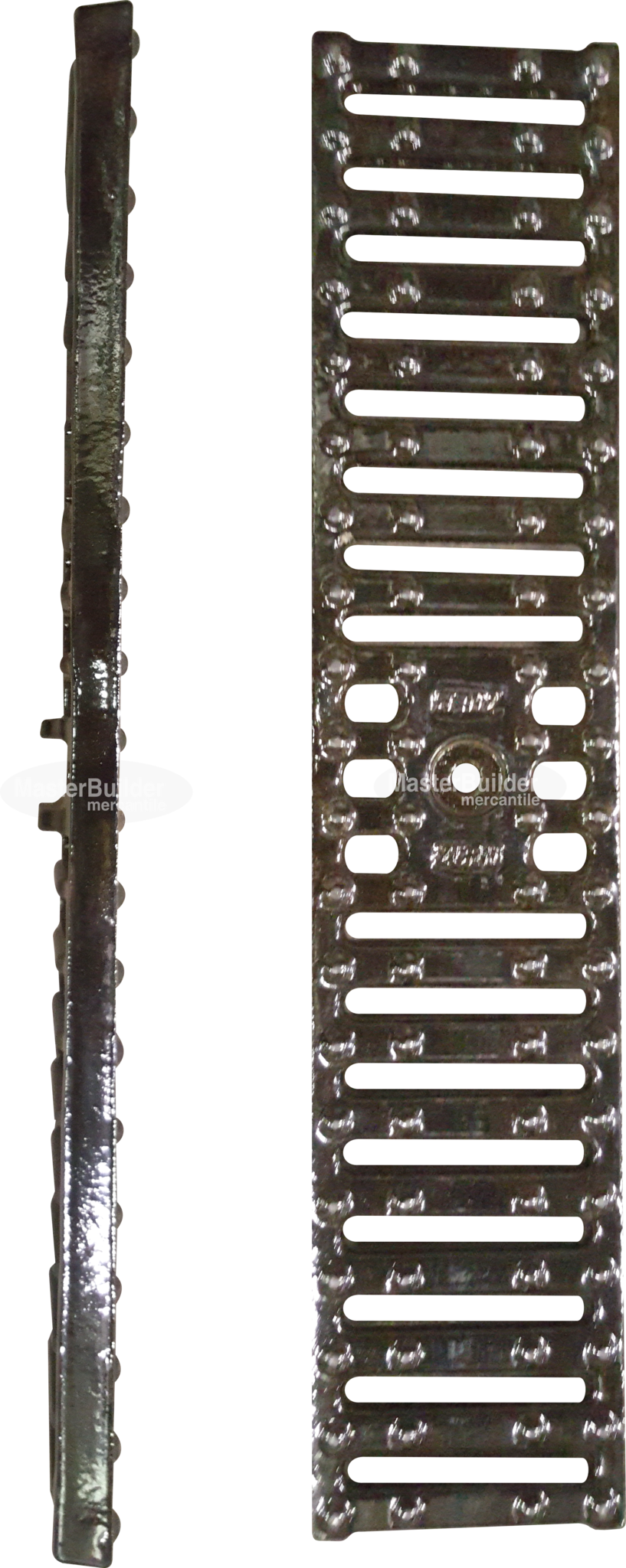

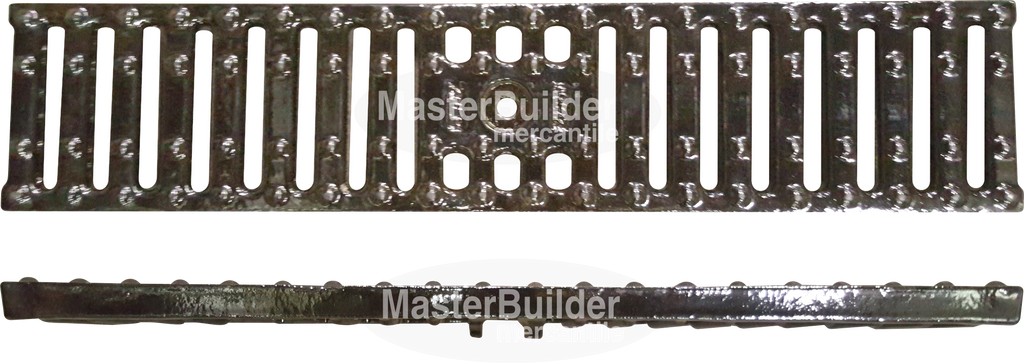

Zurn P4-CG 4-1/8" Wide Cast Iron Slotted Grate for Z884

ZurnSKU: ZUR-P4-CG

Price:
Sale Price$ 1,810.00 MXN
Description

Zurn

Zurn P4-CG 4-1/8" Wide Cast Iron Slotted Grate for Z884 Trench Drain [66402].

Engineering Specifications:

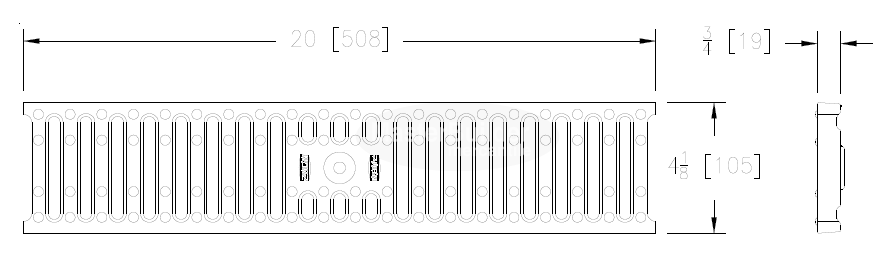

ZURN P4-CG 20” [508mm] X 4-1/8” [105mm] Cast Iron Slotted Grate weighing 5.2 lbs. per linear foot [7.7 kg/m]. The grate has an open area of 12.2 square inches per linear foot [258.2 cm2 /m] DIN Rating of Class B, ANSI rating of Medium-Duty.

  • Material: Cast Iron
  • DIN Rating: Class B
  • Weight: 5.2 lbs/ft. [7.7 kg/m]
  • Open Area: 12.2 in2 /ft. [258.2 cm2 /m]
  • ANSI Rating: Medium-Duty
  • Application: Light Vehicle Traffic
  • Slot Width/Hole Size: 0.375" [9.5mm]
  • ADA: No
  • H-20: No
  • FAA: No
  • Cast Number: 66402

Note:

  • 2 GRATES REQUIRED PER Z884 40" SECTION.
