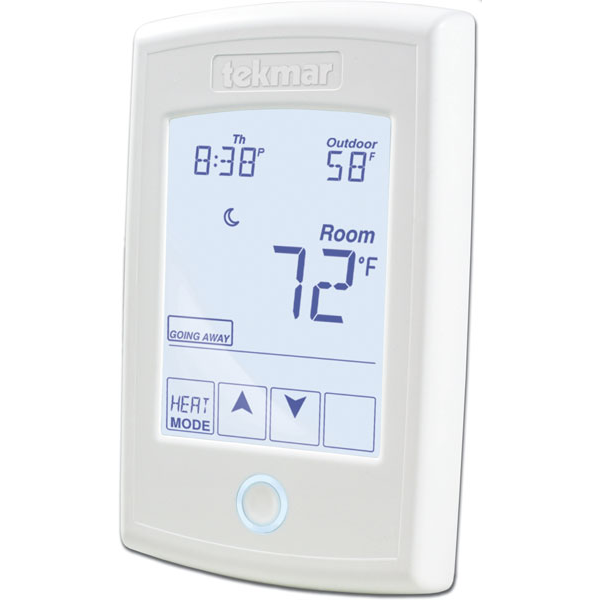

Tekmar 552 TekmarNet Thermostat - One Stage Heat
Features:
-
2 Auxiliary Sensor Inputs
-
Air Group Member
-
Auto Heating Cycle
-
Away Scene Key
-
Backlight
-
Exercising
-
Floor Warming (with 079 slab sensor)
-
Freeze Protection
-
Optional Floor Temperature Display
-
Outdoor Temperature Display
-
Programmable setback schedule
-
Pulse Width Modulation
-
Room Temperature Limiting
-
Touchscreen Technology
-
Warm Weather Shut Down
-
Zone Post Purge
-
Zone Synchronization
-
tekmarNet® Communication Compatible
Specifications:
- Packaged Weight - 0.8lb
- Control - Microprocessor control. This is not a safety (limit) control
- Dimensions - 5" H x 3-1/4" W x 15/16" D (127 x 82 x 23 mm)
- Enclosure - White ABS / PC plastic
- Approvals - Meets Class B: ICES & FCC Part 15
- Ambient Conditions - Indoor use only, 32 to 122°F (0 to 50°C), RH ≤90% non-condensing
- Power supply - 24 V ±10%, 50/60 Hz, 1.8 VA Standby, 56 VA fully loaded, NEC / CEC Class 2
- Relay - 24 V (ac) 2 A
- Sensor - NTC thermistor, 10 kΩ @ 77°F (25°C ±0.2°C) ß=3892
- Warranty - Limited 3 Year Warranty
