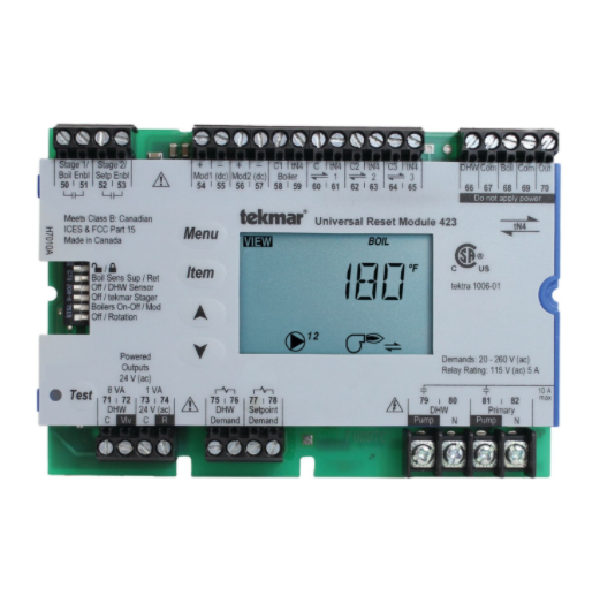

Tekmar 423 TEKNET - Universal Reset Module - Four tN4 - Two Boiler - DHW & Setpoint

TekmarSKU: TEK-423

Price:
Sale Price$ 24,601.00 MXN
Description
Tekmar 423 TEKNET - Universal Reset Module - Four tN4 - Two Boiler - DHW & Setpoint

Tekmar 423 TEKNET - Universal Reset Module - Four tN4 - Two Boiler - DHW & Setpoint

    Features:

    • DHW priority (optional), setpoint operation
    • Expandable up to 96 zones, two on/off or two modulating boiler control
    • DHW post purge, DHW control
    • Powered pump outputs, system setback (with optional timer)
    • Controls up to 4 water temperatures (with use of up to 3 mix expansion modules), automatic boiler differential
    • One touch overrides (with optional User Switch)
    • Outdoor temperature reset, indoor temperature feedback
    • Exercising, boiler protection
    • Warm weather shut down, zone synchronization

    Specifications:

    • Agency Approvals CSA C US, CSA/UL 61010-1, meets Class B: ICES & FCC Part 15
      Ambient Conditions Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH 80 percent to 88 degrees F (31 degrees C), down to 50 percent from 104 to 122 degrees F (40 to 50 degrees C), Altitude less than 6560 feet (2000 m), Installation Category II, Pollution
      Boiler Relay 115 V (ac) 5 A
      Combined Load 10 A Maximum (for DHW and Primary Pump)
      Control Type Microprocessor PID control, this is not a safety (limit) control
      Demand 20-260 V (ac) / 0.1 VA at 24 V
      DHW - Valve Output 24 V (ac) 8 VA Maximum
      Dimensions 3-5/8" H x 5-3/8" W x 9/16" D (92 x 137 x 14 mm)
      Enclosure Material Does Not Apply To Product
      Enclosure NEMA Rating Does Not Apply To Product
      Hydronic - HVAC Control Type Universal Reset Module
      Modulating Output 0-10 V (dc) Minimum 2500
      Power Supply Provided by interconnected tekmarNet Zone Manager
      Pump Relay 115 V (ac) 5 A, 1/6 hp
      Sensor NTC thermistor, 10 k at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892





    Installation Manual
