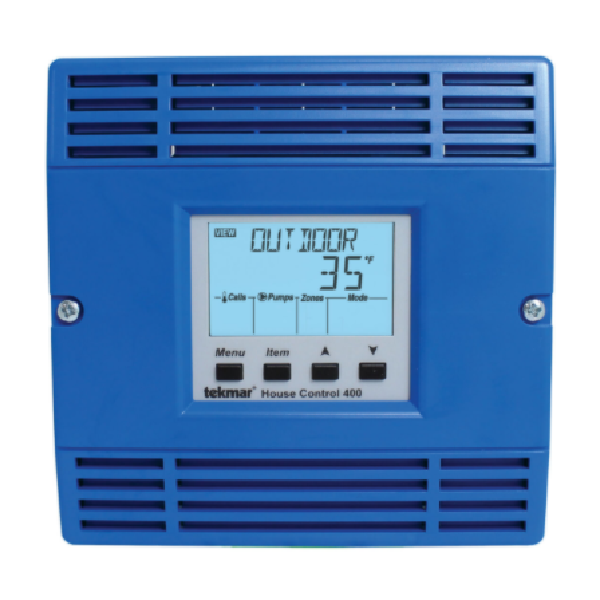

Tekmar 400 TEKNET - tN2 House Control - Boiler - DHW & Setpoint - Four Zone Valves

TekmarSKU: TEK-400

Price:
Sale Price$ 18,821.00 MXN
Description
Tekmar 400 TEKNET - tN2 House Control - Boiler - DHW & Setpoint - Four Zone Valves

Tekmar 400 TEKNET - tN2 House Control - Boiler - DHW & Setpoint - Four Zone Valves

    Features:

    • For use with tekmarNet® 2 thermostats only, tN4 expansion terminals
    • Warm weather shut down, zone synchronization
    • Exercising, boiler protection
    • Only requires 2 Wires Per Zone, Four 24 V (ac) powered zone outputs
    • Outdoor temperature reset, indoor temperature feedback
    • Setpoint operation, automatic boiler differential
    • Powered pump outputs, System Setback (with optional Timer)
    • DHW control, DHW priority (optional)
    • DHW post purge, single on/off, two stage, or modulating boiler control

    Specifications:

    • Agency Approvals CSA C US, meets class B: ICES & FCC Part 15
      Ambient Conditions Indoor use only, 32 to 104 degrees F (0 to 40 degrees C), RH less than or equal to 90 percent Non-condensing
      Boiler Stage1 Stage2 Relay 24 V (ac) 5 A
      Control Load 2 VA
      Control Type Microprocessor control, this is not a safety (limit) control
      Dimensions 5.5" H x 5.5" W x 2.25" D (140 x 140 x 57 mm)
      Enclosure Material Blue PC+ABS plastic
      Enclosure NEMA Rating NEMA 1
      Hydronic - HVAC Control Type tN2 House Control
      Modulating Output Boiler modulation 0 - 10 V (dc) 500 ohms min load impedance, 4 - 20 mA 1 k ohms max load impedance
      Power Supply 24 V (ac) plus / minus 10 percent, 60 Hz, 100 VA max, Class 2
      Pump Relay 115 V (ac) 5 A, 1/6 hp
      Sensor NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta=3892




    Installation Manual
