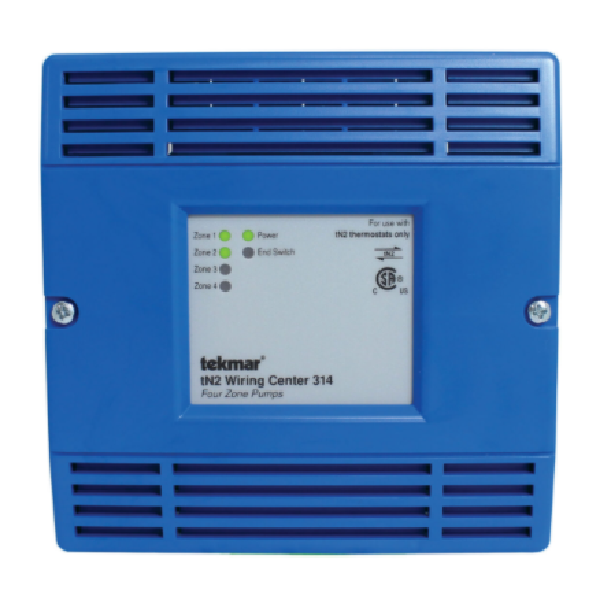

Tekmar 314 TEKNET - tN2 Wiring Center - Four Zone Pumps

TekmarSKU: TEK-314

Price:
Sale Price$ 8,629.00 MXN
Description
Tekmar 314 TEKNET - tN2 Wiring Center - Four Zone Pumps

Tekmar 314 TEKNET - tN2 Wiring Center - Four Zone Pumps

    Features:

    • tN4 expansion terminals
    • Outdoor sensor input
    • Isolated end switch
    • Supports two-stage tekmarNet® 2 thermostats
    • For use with tekmarNet® 2 thermostats only
    • External diagnostic LEDs
    • Four 115 V (ac) powered pump outputs
    • CSA C US Certified for use in USA and Canada
    • Only requires 2 wires per zone

    Specifications:

    • Agency Approvals CSA C US, meets class B: ICES & FCC Part 15
      Ambient Conditions Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing
      Control Type Microprocessor control, this is not a safety (limit) control
      Dimensions 5.5" H x 5.5" W x 2.25" D (140 x 140 x 57 mm)
      Enclosure Material Blue PC+ABS plastic
      Enclosure NEMA Rating NEMA 1
      End Switch Relay 24 V (ac) 2 A
      Power Supply 24 V (ac) plus / minus 10 percent, 60 Hz, 3 VA min, 11 VA max, Class 2
      Sensor NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
      Zone Power Input 115 V (ac) 12 A max
      Zone Pump Relay 115 V (ac) 5 A
      Zoning - Thermostat Type tN2 Wiring Center


    Installation Manual
