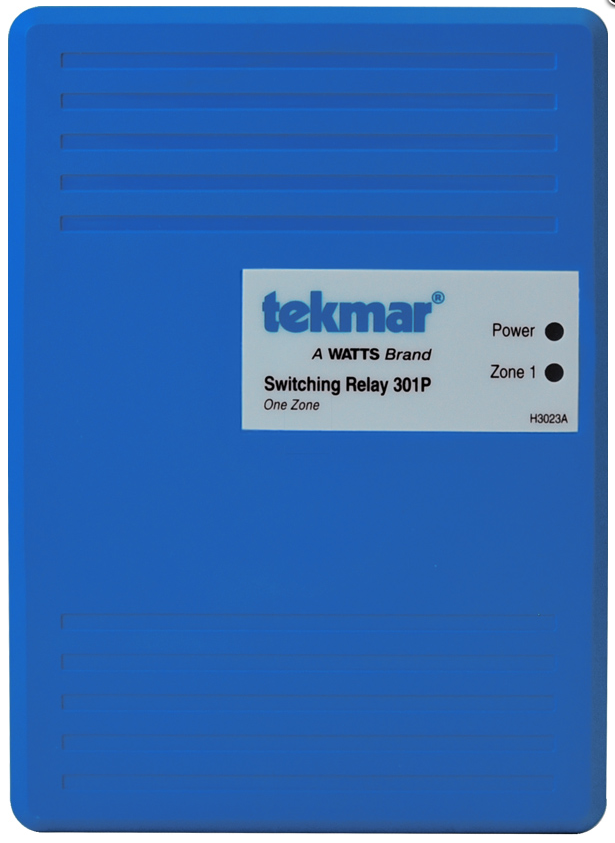

Tekmar 301P Relay Switching One Zone

TekmarSKU: TEK-301P

Price:
Sale Price$ 2,354.00 MXN
Description
Tekmar 301P Relay Switching One Zone

Tekmar 301P Relay Switching One Zone

    Features:

    • 20 VA transformer

    • Fuse protects pump

    • Pump exercising

    • Hinged cover

    • Spare fuse included

    • LED for power and zone

    • Thermal circuit breaker protects transformer

    • Compatible with all low voltage thermostats

    • Post purge

    • Top, bottom and back conduit knockouts

    Specifications:

    • Packaged Weight - 2.5lb
    • Control - Microprocessor control. This is not a safety (limit) control
    • Dimensions - 6-11/16" H x 4-15/16" W x 2-7/16" D (169 x 123 x 62 mm)
    • Enclosure - Cover: ABS plastic, Base: galvanized steel, NEMA type 1
    • Approvals - CSA C US
    • Ambient Conditions - Indoor use only, 32 to 122°F (0 to 50°C), RH ≤90% non-condensing
    • Power Supply - 115 V (ac) ±10%, 60 Hz, 5 A
    • Transformer - 20 VA at 24 V (ac), 16 VA available for thermostat
    • Control Lead - 7.5 VA at 115 V (ac)
    • Fuse - T5A 250 V slow blow, spare fuse included
    • Pump Relay - 230 V (ac), 5 A, 1/3 hp
    • Boiler XX End Switch - 24 V (ac), 5 A
    • Warranty - Limited 3 Year Warranty

    Installation Manual
