MIFAB R1200-F 15" Large Sump Roof Drain with Parabolic Flow Control Weir, 2" 3" 4" 6" No-Hub Connection

MifabSKU: MIF-R1202-F1

Dome Type: Poly (Plastic Dome)
Connection Size: 2" No-Hub (R1202-F)
Number of Weir Openings: '-F1 One Notch Accuflow Parabolic Weir (R1200-F1)
Price:
Sale Price$ 28,130.00 MXN
Description
MIFAB R1200-F 15" Large Sump Roof Drain with Parabolic Flow Control Weir, 2" 3" 4" No-Hub Connection

MIFAB R1200-F 15" Large Sump Roof Drain with Parabolic Flow Control Weir, 2" 3" 4" 6" No-Hub Connection.

Product Function:

Used to control the flow of rain water off of the roof. Slotted weirs reduce the volume of water to the leader. Specify -F1, -F2 or -F3 for one, two or three slots to attain the required limitation of volume. Flow performance per weir is 10 GPM per inch of water per slot.

Product Specification:

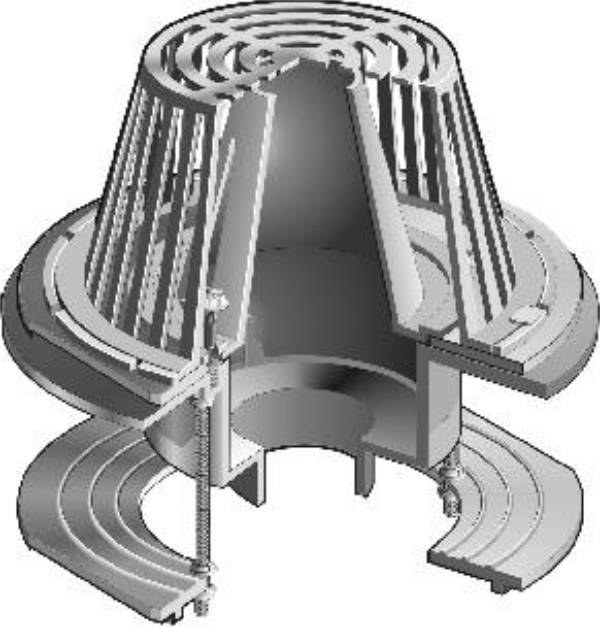

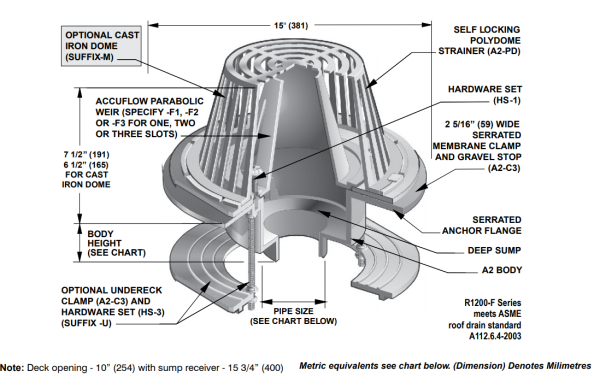

MIFAB® Series R1200-F lacquered cast iron deep sump roof drain with anchor flange, large cast iron water proofing membrane clamp ring with integral gravel stop, accuflow parabolic weir (specify -F1, -F2, -F3 for one, two or three slots), and standard self-locking polydome strainer with a free area of 125 square inches.

Technical Downloads:
