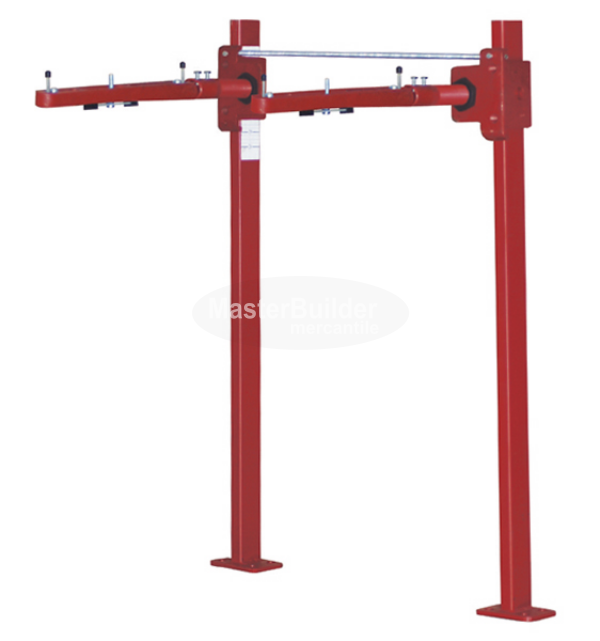

MIFAB MC-42 ADA Lavatory Fixture Carrier with Adjustable Concealed Arms

MifabSKU: MIF-MC-42

Price:
Sale Price$ 15,354.00 MXN
Description

MIFAB MC-42 ADA Lavatory Fixture Carrier with Adjustable Concealed Arms.

Function:

Used to support off-the-floor ADA (elongated) fixtures so that the vertical load bearing components are concealed within the wall. The fixture carrier has no contact with the finished floor inside of the room.

Product Specification:

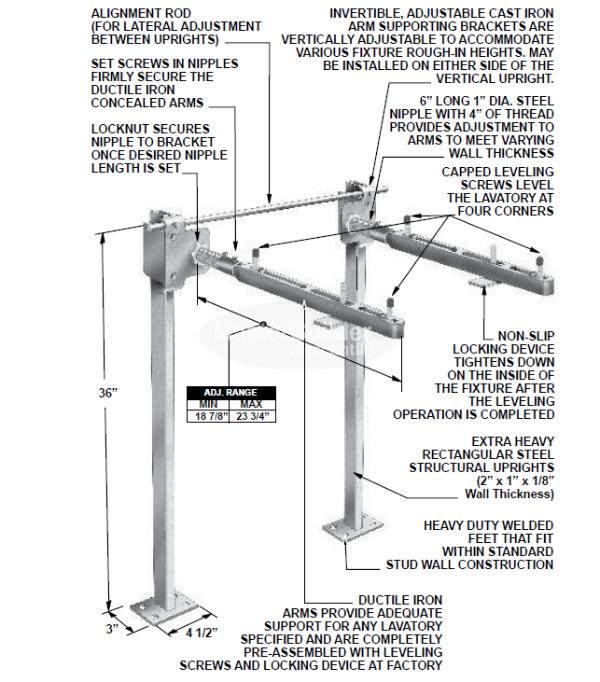

MIFAB® Series MC-42 floor mounted concealed arm ADA lavatory carrier with lacquered, adjustable, ductile iron concealed support arms. Complete with lacquered cast iron invertible and adjustable arm supporting brackets, adjustable steel nipples with locknut and set screws, alignment rod, two lacquered 2” x 1” x 1/8” thick structural steel uprights with 3” x 4 ½” welded steel feet and fixture leveling and locking hardware.

Product Notes:

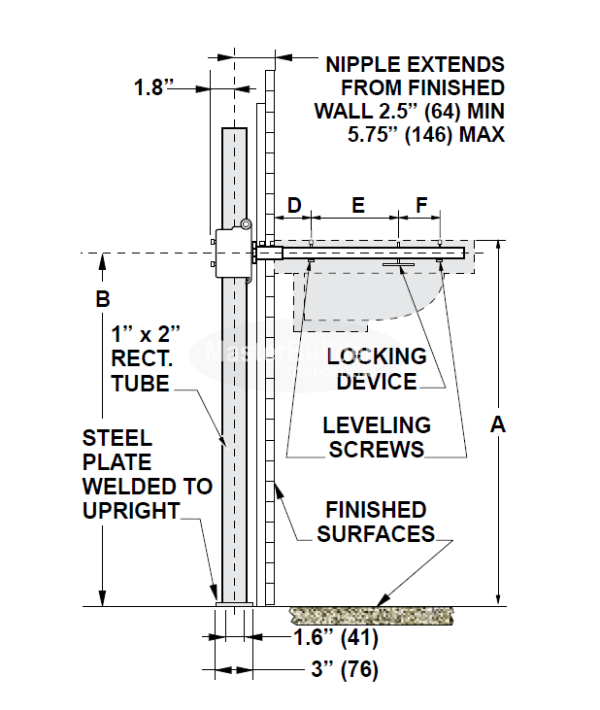

  • Adjustment Range: 18-7/8" Min. to 23-3/4" Max.
  • Meets ANSI/ASME fixture carrier standard A112.6.1M-97

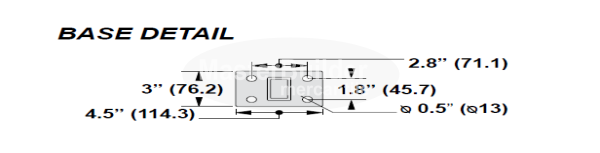

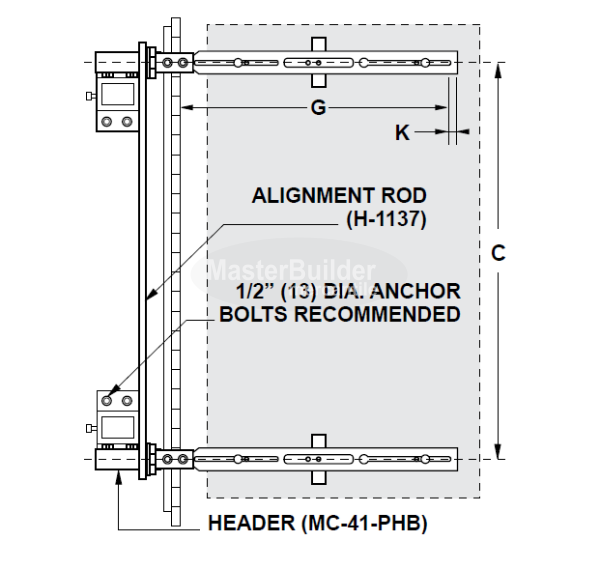

  • FOOT SUPPORTS SHOULD BE SECURELY ANCHORED TO FLOOR WITH 1/2” (13) BOLTS AND ANCHORS BY OTHERS
  • Wall supported fixture mounting plates must be securely affixed (with suitable hardware by others) to a wall fully capable of bearing the weight of the plate and fixture.

Technical Downloads:
