Mifab Lil-7-S 7 GPM HDPE Solids Interceptor w/ 2" Connection (MI-SOLID-PL-7).
Features & Benefits:
- HDPE injection molded for long lasting reliability
- Superior life-cycle performance versus traditional fabricated steel solids interceptors
- External Vented Flow Control Fitting
- Ribbed body design provides extra structural integrity
- Made in the USA
- Lifetime Warranty
- Lightweight
- Individually Boxed Interceptors
- Sealed Lid
- Easy to Remove Lid
- Easy to Clean
- Strong Lid: 350 Lbs.
Product Specifications:

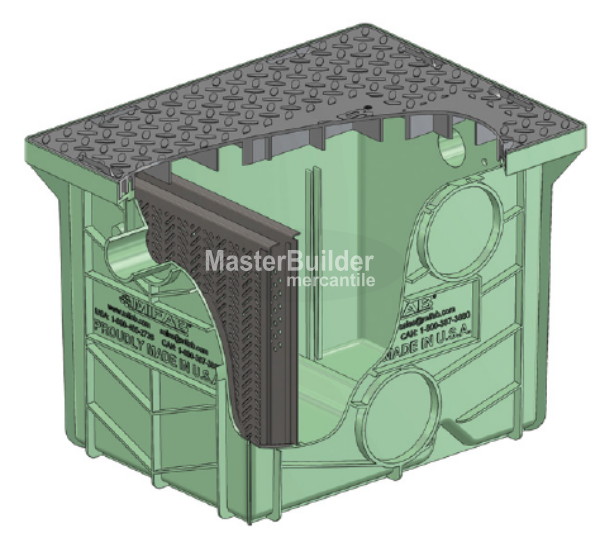

MIFAB® Lil-7-S HDPE injection molded solids interceptor with flow rating of 7 GPM and solids storage holding capacity of 0.955 Cubic Feet. Unit shall include: internal perforated sediment bucket (1/4" diameter holes) with coarse screen, baffle assembly (3/8" x 1 1/4" slots) and HDPE injection molded, non skid, rectangular gasketed lid with securing latches.
Function:
Solids interceptors are required anywhere that solids may be introduced into the public sewer system in applications such as: barber shops, dentist offices, salons, artist studios, laundry facilities, machine shops, food waste, parking lots, car washes, food processing, livestock and agricultural drainage. These wastes must be separated before entering the sewer system.
Typically installed between the grease interceptor and the fixtures served either on or recessed in the floor. The solids interceptor will filter out solids and sediment from the fixture waste line before entering the related grease interceptor to reduce clogging and improve performance. Interceptor is cleaned by removing top access gasketed lid and accessing the internal sediment bucket.
Simple latch design permits fast and easy removal of the lid for cleaning and maintenance. HDPE injection molded body and lid are covered by a limited lifetime warranty. All Lil Max interceptors can withstand a temperature of up to and including 180 degrees Fahrenheit.
Technical Downloads:
- MIFAB Lil-S: Specification Submittal
- MIFAB Lil-S: Installation Instructions
- MIFAB Lil-S: Limited Lifetime Warranty
- MIFAB Lil-S: Features and Benefits
