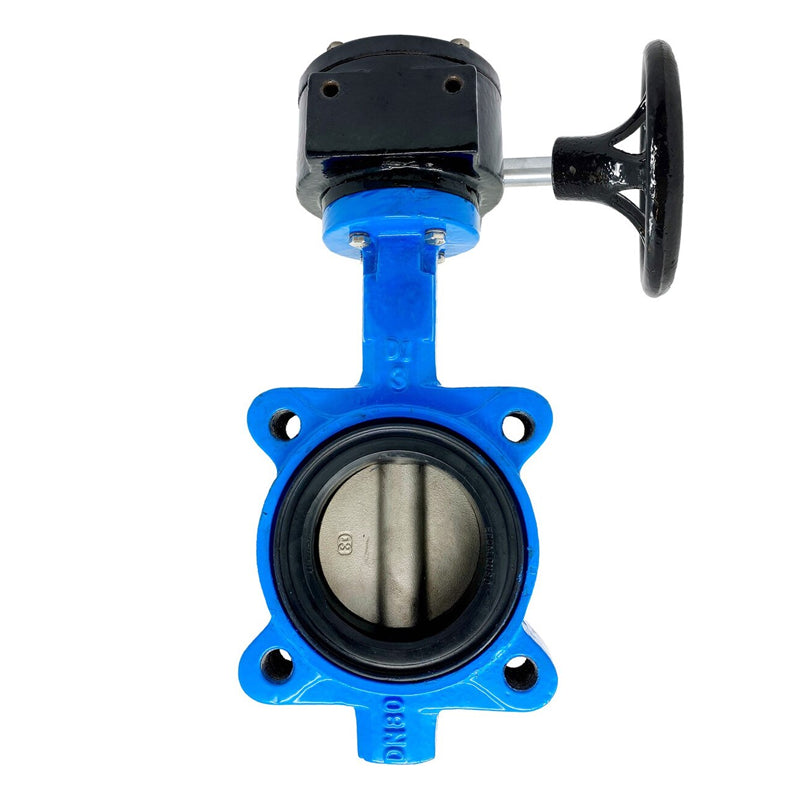

BL-1000-22DEG Lug Butterfly Valve.
Product Overview:
The BL-1000-22DEG Series Lug Butterfly Valve is engineered for robust performance in demanding applications. With a 200 WOG (Water, Oil, Gas) rating, this valve ensures reliable operation across various systems.
Key Features:
-
Construction: Crafted with a ductile iron body and a 316 stainless steel disc, the BL-1000-22DEG offers exceptional durability and resistance to corrosion.
-
Seat Options: Choose from a range of seat materials—including Buna-N, EPDM, Hypalon, Viton, Neoprene, and PTFE—to suit specific media and temperature requirements.
-
Compliance: This valve meets industry standards, including MSS-SP67 and API 609, ensuring quality and reliability.
-
Flange Drilling: Designed with flange drilling to ANSI B16.1 Class 125/150 specifications, facilitating compatibility with various piping systems.
-
Testing: Subjected to rigorous testing per API 598 standards, the BL-1000-22DEG guarantees leak-tight performance.
-
Installation Note: For optimal performance, install the valve in a partially open position. Full closure during startup may damage the seat and void warranties.
The BL-1000-22DEG Series Lug Butterfly Valve is ideal for applications requiring a durable, corrosion-resistant valve with customizable seat materials to handle diverse media and temperature conditions.
Notes:
- Caution: All 1000 series valves must be installed in the partial open position. Installing in the full closed position may damage the seat during start up and void any warranties.
Technical Downloads:
- KVC BL-1000-22DEG: Detailed Product Information
- KVC BL-1000-22DEG: BW & BL-1000/2000/4000/5000 Numbering System
- KVC BL-1000-22DEG: Cv Values for 1000/2000/4000/5000 Series
- KVC BL-1000-22DEG: Manual Gear Operator for 1000/2000/4000 Series
- KVC BL-1000-22DEG: Seating & Unseating Torques for 1000 & 2000
- KVC BL-1000-22DEG: Studs & Bolts for Mounting Butterfly Valves
