Description

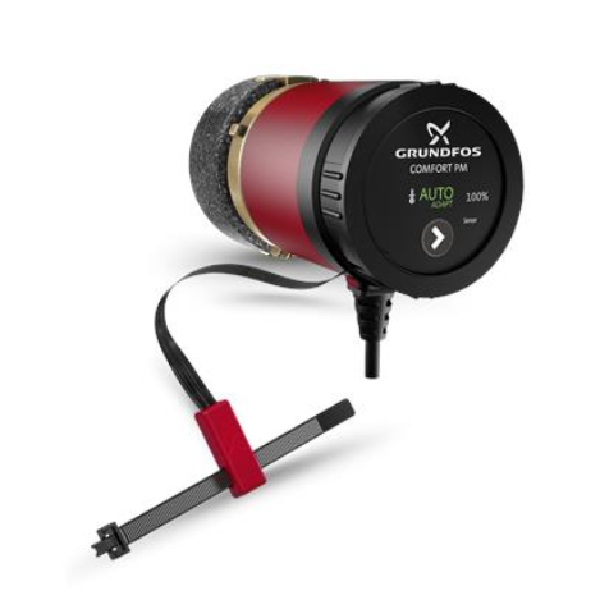

Grundfos 98420222 COMFORT 10-16 A PM B5/LC Recirculating Domestic Hot Water Pump [Discontinued].
Features:
- Unique AUTOADAPT feature saving up to 48% heat energy and 96% motor energy compared with a standard pump in continuous operation
- Flushing function
- Automatic legionella eliminating operation (if supported from the system)
- Automatic weekend and vacation detection
- Temperature control (can be chosen through the push button)
- Continuous operation (can be chosen through the push button)
- Quick and simple electrical installation due to the highly reliable ALPHA plug
- dry running detection
- Easy-to-clean and lime-insensitive spheric rotor
- Wearless operation due to liquid lubricated bearing
- No leakage risk due to a static seal
- Easy maintenance and cleaning through the easy-to-separate pump head fitting almost all competitor pump housings
- Corrosion resistant lead free brass pump housing
- No additional motor protection necessary due to integrated motor electronics
Specifications:
Technical
Speed Number | 1 |
Head max | 5.25 ft |
TF class | 95 |
Approvals on nameplate | UL,CSA |
Materials
Pump housing | Ecobrass |
Impeller | Stainless steel, EPDM, PPO, PTFE, Graphit |
Installation
Maximum operating pressure | 145.04 psi |
Flange standard | USA Sweat |
Pipe connection | 1/2" Sweat |
Pressure stage | PN 10 |
Port-to-port length | 3 1/8 in |
Liquid
Pumped liquid | Water |
Liquid temperature range | 35.6 .. 203 °F |
Selected liquid temperature | 140 °F |
Density | 61.35 lb/ft³ |
Electrical Data
Max. power input | 6 W |
Main frequency | 60 Hz |
Rated voltage | 1 x 115-230 V |
Current in speed 3 | 0.10/0.07 A |
Capacitor size - run | 0.6 µF |
Enclosure class (IEC 34-5) | IP44 |
Insulation class (IEC 85) | F |
Motor protection | NONE |
Thermal protec | IMPE |
Cable type | Connecting cord with plug |
Type of cable plug | NEMA 1-15P |
Others
Net weight | 2.6 lb |
Gross weight | 3.79 lb |
Shipping volume | 0.12 ft³ |
Country of origin | DE |
Custom tariff no. | 8413.70.00.21 |
