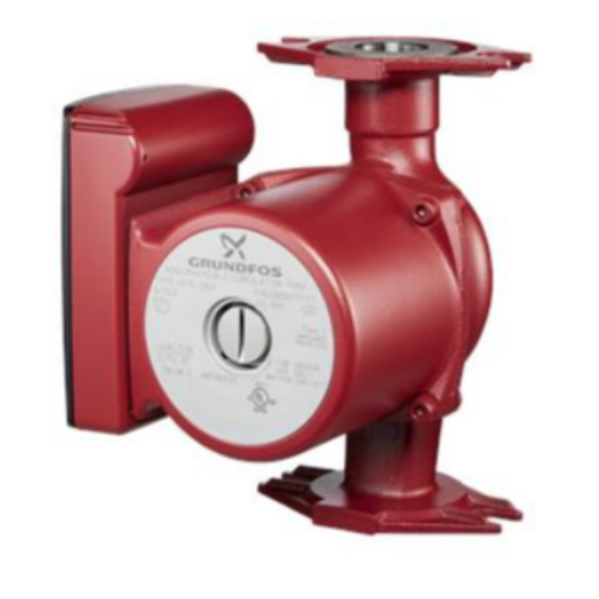

Grundfos 59896771 UP 15-29 SF Stainless Steel Circulator Pump For Domestic Hot Water

GrundfosSKU: GRU-59896771

Price:
Sale Price$ 10,076.00 MXN
Stock:
Contact for Availability
Description

Grundfos 59896771 UP 15-29 SF Stainless Steel Circulator Pump For Domestic Hot Water

Grundfos 59896771 UP 15-29 SF Stainless Steel Circulator Pump For Domestic Hot Water

Features:

UP B is a circulator pump with a bronze pump housing for drinking water applications, while Grundfos UP N has stainless-steel pump housing. Both variants are recommended for underfloor heating systems.

Specifications:

Technical

Speed Number 1
Max flow 20.7 US gpm
20.7 US gpm
Head max 9.843 ft
9.843 ft
Approvals on nameplate UL, CSA



Materials

Pump housing Stainless steel
DIN W.-Nr. 1.4301
AISI 304
Impeller Composite, PES

Installation

t max amb 104 °F
Ambient max at 176°F liquid 176 °F
Maximum operating pressure 145.04 psi
Flange standard USA Oval
Type of connection S.S. Flange
Pipe connection 2 - Bolt Flange
Pressure stage PN 10
Port-to-port length 6 1/2 in

Liquid

Pumped liquid Water
Liquid temperature range 35.6 .. 230 °F
Selected liquid temperature 140 °F
Density 61.35 lb/ft³



Electrical Data

Max. power input 87 W
Main frequency 60 Hz
Rated voltage 1 x 115 V
Current in speed 3 0.75 A
Capacitor size - run 10 µF/180 V
Number of poles 2
Insulation class (IEC 85) F
Built-in motor protection CONTACT
Thermal protec internal



Controls

Pos term box

9H



Others

Gross weight 6 lb
Country of origin US
Custom tariff no. 8413.70.00.21
