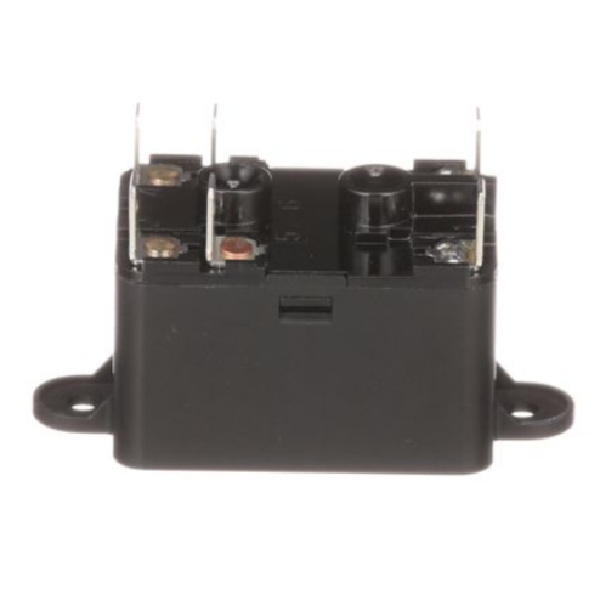

Emerson 90-360 Heavy Duty General Purpose Relay

EmersonSKU: EME-90-360

Price:
Sale Price$ 730.00 MXN
Description

Emerson 90-360 Heavy Duty General Purpose Relay

Emerson 90-360 Heavy Duty General Purpose Relay

    Features:

    • Compact, totally enclosed design.
    • For heating and cooling applications and general switching.
    • Quiet, reliable and economical.

    Specifications:

    • Switch Action - SPNO
    • Coil Voltage - 24 Vac, 50/60 Hz
    • Res DC OHMS - 77
    • Coil Data Nom. Current MA - 125
    • Coil Data Nominal VA Sealed - 3
    • Inrush VA - 4
    • Coils | Insulation - Class B
    • Coils, Termination - 1/4” Quick Connect
    • Coils, Operate - 85% of nominal coil voltage; 110% maximum safe operate
    • Coils, Duty Cycle - Continuous
