Description

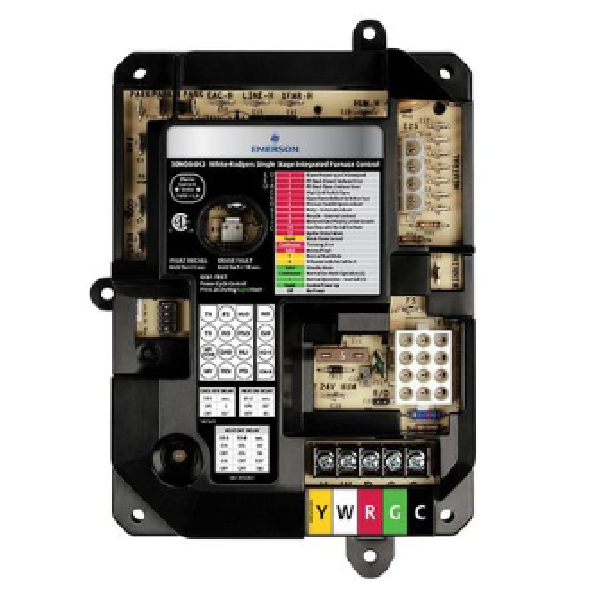

Emerson 50M56U-843 Integrated Furnace Controls Direct OEM Replacement
Features:
- Reduces inventory by providing maximum control replacement coverage
- Models include a universal 120V nitride ignitor to allow replacement of 80V and 120V controls
- Simple pushbutton fault recall with Tri-Color LED indicators streamline installation and system troubleshooting
- 75% of all applications install without adapter harnesses
- 120V air cleaner output and 24V or 120V humidifier output up to 1 Amp max
- Replaceable automotive style fuse
Specifications:
- Multiple Input Voltages - 24 Vac, 120 Vac, 50/60 Hz
- Amp Rating - 14.5 FLA-25.0 LRA @ 120 Vac (Circulator Relay)
- Ambient Operating Temperature
- Operating Humidity - 5% to 93% relative humidity (non-condensing)
- Accessories - Includes Ignitor
- Approvals - CSA (Canada & US)
Documents
Instructions
