Description

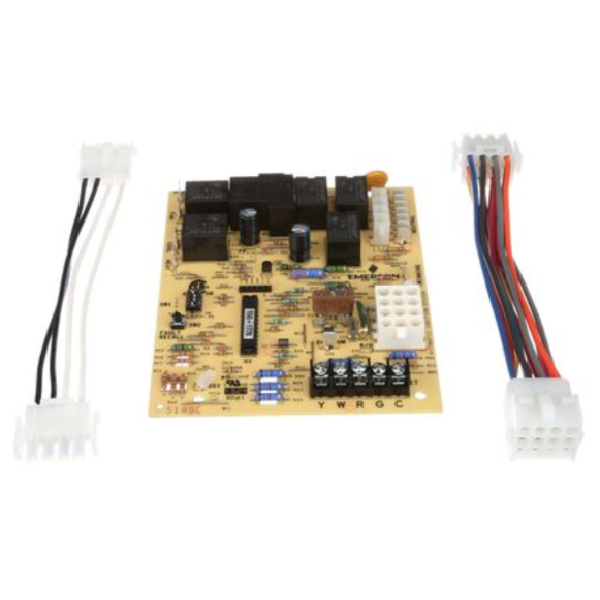

Emerson 50M56U-801 Integrated Furnace Controls Direct OEM Replacement
Replaces:
- Lennox, Armstrong, AirEase, Concord, Ducane, Aire-Flo
- 100973-01*, 12L4201, 100973-02*, 17W70*, 1012-83-9673A, 50A55-120, 1012-967, 56L8501, 1012-968, 56W19, 1012-969*, 74W03, 1012-969A*, 75M1701*, 1012-977A, 78M1701*, 103085-01, 78M4701*, 103085-02, 80M2701, 103085-03, 81W03*, 103098-01, 81W11, 1195-83-100A, 94W83, 1195-100, R47582-001
Features:
- Direct OEM replacements designed for high volume major brand controls
- Models include PSC, Variable Speed and ECMx motor control
- Diagnostic LED indicators streamline installation and system troubleshooting
- 120V air cleaner output and 120V humidifier output up to 1 Amp max
- Factory standard safety timings and adjustable fan delay options
- Replaceable automotive style fuse
Specifications:
- Family Brands of Equipment - Lennox
- Stages - Single Stage
- Ignition Type - 14.5 FLA - 25.0 LRA @ 120 Vac
- Ignitor Voltage - 120 Vac
- Inducer Motor/Blower Motor - PSC/PSC
- Blower Motor - Speed Taps: Heat, Cool, Fan
- Thermostat Inputs - R, C, W, Y G
- Accessories - Includes Wiring Accessories
- Twinning - No
- Communicating System - No
- Mounting Options - Standoff
