Description

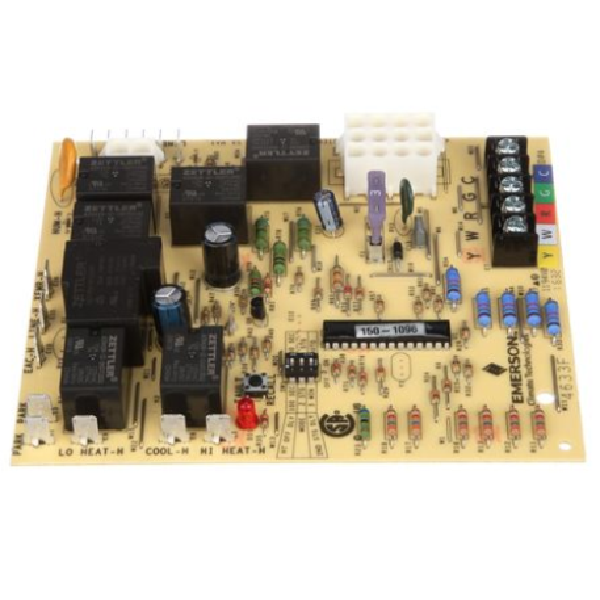

Emerson 50M56-743 Integrated Furnace Controls Direct OEM Replacement
Replaces:
- Goodman
- 0130F00006, PCBBF122, 0130F00006S, PCBBF122S, PCB00109, PCBBF132, PCBBF109, PCBBF132S, PCBBF109S
- White-Rodgers
- 50M56-289
Features:
- Direct OEM replacements designed for high volume major brand controls
- Models include PSC, Variable Speed and ECMx motor control
- 120V air cleaner output to 1 Amp max
- 120V air cleaner output and 120V humidifier output up to 1 Amp max
- Factory standard safety timings and adjustable fan delay options
- Replaceable automotive style fuse
Specifications:
- Family Brands of Equipment - Goodman
- Stages - Single or Two Stage
- Ignition Type - 14.5 FLA - 25.0 LRA @ 120 Vac
- Ignitor Voltage - 120 Vac
- Inducer Motor/Blower Motor - PSC/PSC
- Blower Motor - Speed Taps: Lo Heat, Hi Heat, Cool
- Thermostat Inputs - R, C, W, Y G
- Accessories - None
- Twinning - No
- Communicating System - No
- Mounting Options - Standoff
