Description

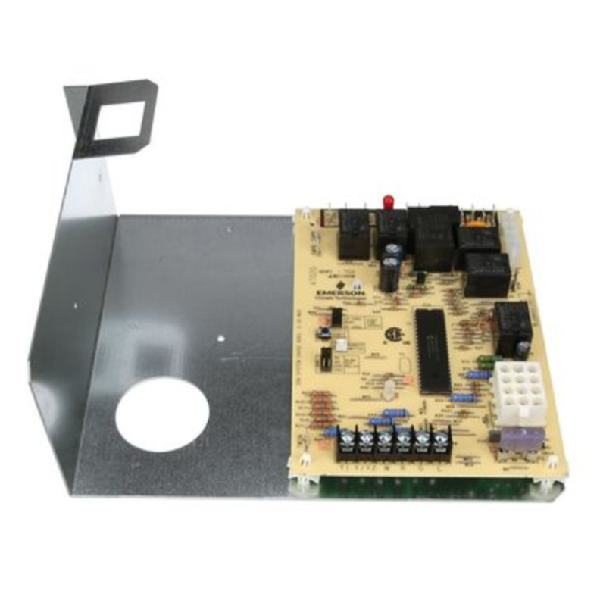

Emerson 50A56-965 Integrated Furnace Controls Direct OEM Replacement
Replaces:
- York
- 265901, S1-03101284000, 265902, S1-03101933000, S1-03100662000, S1-03101972000, S1-03101250000, S1-03101973000, S1-03101266000, S1-03109167000, S1-03101267000, S1-33102956000, S1-03101267001, S1-33103010000
- White-Rodgers
- 50A56-242, 50A56-243
- ICM
- ICM2808, (PCB Only)
Features:
- Direct OEM replacements designed for high volume major brand controls
- Models include PSC, Variable Speed and ECMx motor control
- Diagnostic LED indicators streamline installation and system troubleshooting
- 120V air cleaner output and 120V humidifier output up to 1 Amp max
- Factory standard safety timings and adjustable fan delay options
- Replaceable automotive style fuse
Specifications:
- Family Brands of Equipment - York
- Stages - Single Stage
- Ignition Type - 14.5 FLA - 25.0 LRA @ 120 Vac
- Ignitor Voltage - 120 Vac
- Inducer Motor/Blower Motor - PSC/PSC
- Blower Motor - Speed Taps: Heat, Lo Cool, Hi Cool
- Thermostat Inputs - R, C, W, Y1, Y/Y2, G
- Accessories - None
- Twinning - Yes
- Communicating System - No
- Mounting Options - Standoff or steel mounting bracket (supplied)
