Description

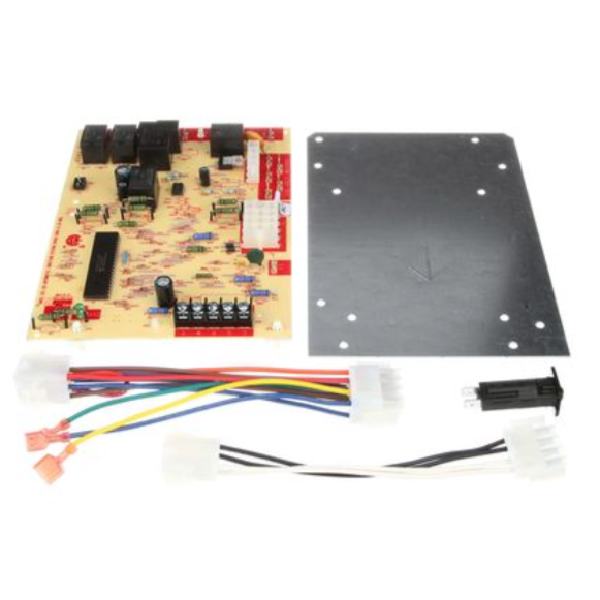

Emerson 21D83M-843 Integrated Furnace Controls Direct OEM Replacement
Replaces:
- Lennox
- 100925-01, 56L8301, 50A62-120, 100925-02, 56L84, 100925-03, 56L8401, 10M93, 63K89, 124110, 63K8901, 17W92, 65867, 17W9201 69M08, 23W51, 69M0801, 23W5101, 69M15, 24L85, 69M1501, 24L8501, 83M00, 30W25, 83M001, 30W2501, 97L48, 32M88, 97L4801, 56L83, L39-564
- White-Rodgers
- 50A62-120, 50A62-121, 50A62-820, 50A66-122, 50A66-123, 50A66-743, 50A66-843
Features:
- Direct OEM replacements designed for high volume major brand controls
- Models include PSC, Variable Speed and ECMx motor control
- Diagnostic LED indicators streamline installation and system troubleshooting
- 120V air cleaner output and 120V humidifier output up to 1 Amp max
- Factory standard safety timings and adjustable fan delay options
- Replaceable automotive style fuse
Specifications:
- Family Brands of Equipment - Lennox
- Stages - Single Stage
- Ignition Type - 14.5 FLA - 25.0 LRA @ 120 Vac
- Ignitor Voltage - 80 Vac only
- Inducer Motor/Blower Motor - PSC/PSC
- Blower Motor - Speed Taps: Heat, Cool, Fan
- Thermostat Inputs - R, C, W, Y G
- Accessories - Includes Wiring Accessories
- Twinning - No
- Communicating System - No
- Mounting Options - Standoff or steel mounting bracket (supplied)
