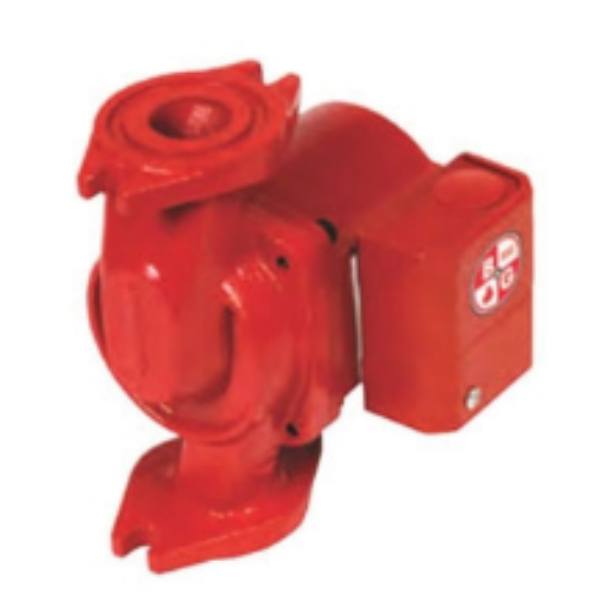

Bell & Gossett 103251 NRF-22 Cast Iron Circulator Pump 1/25HP 1 Speed

Bell & GossettSKU: B&G-103251

Price:
Sale Price$ 4,168.00 MXN
Stock:
In Stock
Description
Bell & Gossett 103251 NRF-22 Cast Iron Circulator Pump 1/25HP 1 Speed

Bell & Gossett 103251 NRF-22 Cast Iron Circulator Pump 1/25HP 1 Speed

Product Description:

  • Circulator Pump
  • Type 1-Speed, In-Line, Wet Rotor, Horizontal
  • Suction Size 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch
  • Discharge Size 3/4 Inch, 1 Inch, 1-1/4 Inch, 1-1/2 Inch
  • End Connection Flanged x Flanged
  • Overall Dimensions 6-3/16 Inch Length x 5-1/8 Inch Width x 6-3/8 Inch Height
  • Flow Rate 0 to 22 GPM
  • Discharge Head 0 to 15 Foot
  • Casing Material Cast Iron
  • Shaft Material Ceramic
  • Impeller Material Noryl
  • Impeller Design Closed Loop
  • Warranty 3 Year from the Date of Manufacture/18 Month from Date of Installation
  • Power Rating 92 Watt
  • Input Supply Rating 115 Volt AC 60 Hertz 1-Phase 0.8 Amp
  • Speed Rating 2940 RPM
  • Temperature Rating 240 Deg F
  • Pressure Rating 150 PSI
  • Motor Type Lubricated, Thermally Protected
  • Inclusions/Features Double Sintered Carbon Bearing, Axial Flange, Impedance Protected
  • Exclusions Flange
  • Application Hydronic Heating System, Residential, Light Commercial
  • Applicable Standard UL (Canada and US), CSA, ISO 9001, CUL

    Features & Benefits:

    • High Starting Torque Provides Years of Trouble-Free Start-Ups
    • Unique B and G Duraglide Bearing System Assures Whisper-Quiet, Maintenance-Free Operation
    • Closed Impeller Design Improves Operating Efficiency
    • Reliable, Maintenance-Free, Whisper Quiet Wet Rotor Circulators Designed for Residential and Light Commercial Heating Systems
