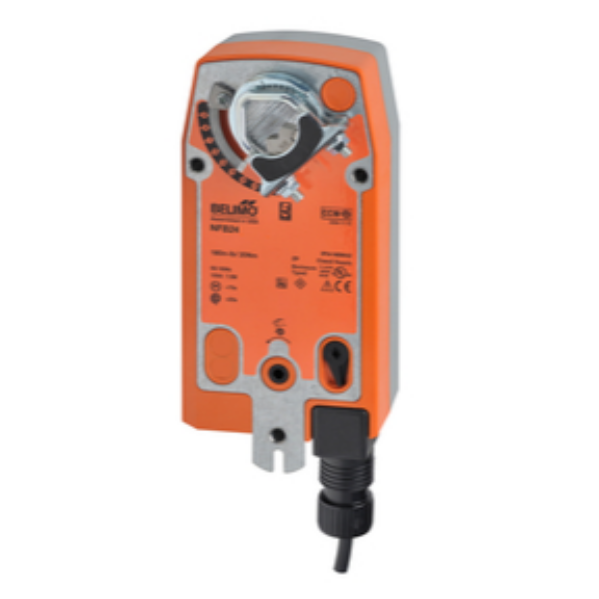

Belimo NFB24 Damper Actuator, 90 in-lb [10 Nm], Spring return, AC/DC 24 V, On/Off

BelimoSKU: BEL-NFB24

Price:
Sale Price$ 5,893.00 MXN
Description
Belimo NFB24 Damper Actuator, 90 in-lb [10 Nm], Spring return, AC/DC 24 V, On/Off

Belimo NFB24 Damper Actuator, 90 in-lb [10 Nm], Spring return, AC/DC 24 V, On/Off

Technical Specifications:

Voltage AC/DC: AC/DC 24 V

Power Consumption (Running): 6 W

Power Consumption (Holding): 2.5 W

Power Consumption For Wire Sizing: 8.5 VA

Torque: 90 in-lb [10 Nm]

Control Type: On/Off

Direction Of Motion Motor: selectable by ccw/cw mounting

Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting

Manual Override: 5 mm hex crank (3/16" Allen), supplied

Angle of Rotation: 95

Running Time (Motor): 75 s / 90°

Running Time (Fail-safe): <20 s

Protection category: IP54

Degree Of Protection NEMA: NEMA 2

Enclosure Type: UL Enclosure Type 2

Ambient Tempreture: -22...122°F [-30...50°C]

Product & Technical Literature:
