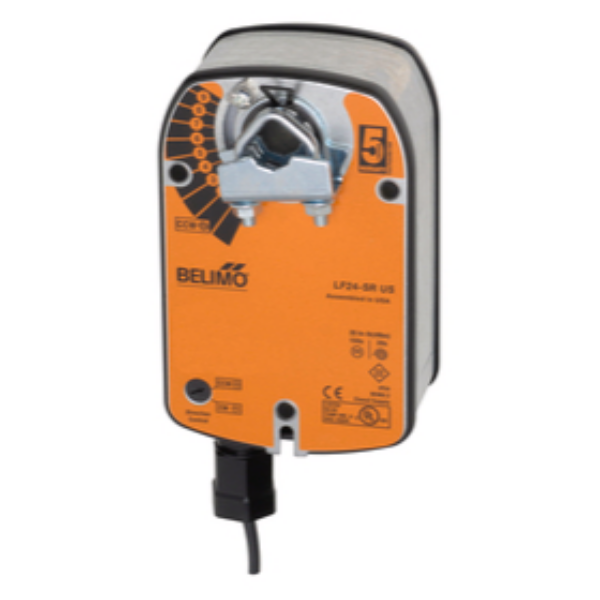

Belimo LF24-SR Damper Actuator, 35 in-lb [4 Nm], Spring return, AC/DC 24 V, 2..10V, Modulating
Technical Specifications:
Actuator Type: Spring return
Angle of Rotation: 95
Control Type: DC 2... 10 V
Degree of Protection: IP54, NEMA 2
Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
Electrical Connection: Cable
Power Consumption (Holding): 1 W
Power Consumption (Running): 2.5 W
Running Time (Fail-safe): <25 s
Running Time (Motor): 150 s / 90°
Safety Function: YES
Shaft Diameter: 3/8...1/2" round, centers on 1/2"
Torque: 35 in-lb [4 Nm]
Voltage AC/DC: AC/DC 24 V
Product & Technical Literature:
