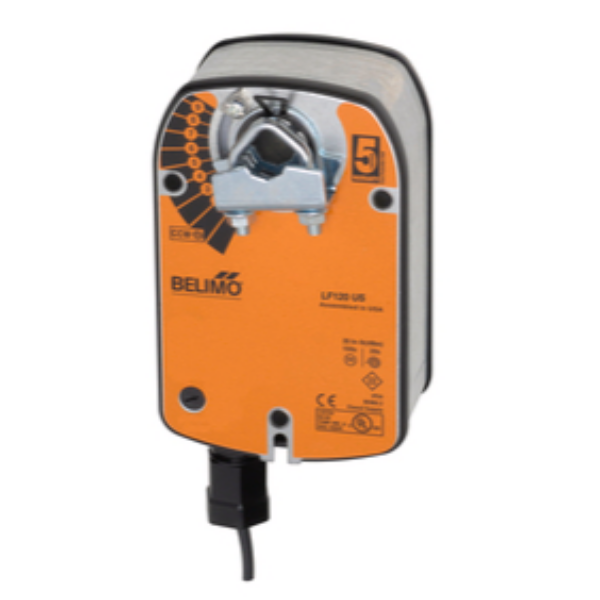

Belimo LF120 Damper Actuator, 35 in-lb [4 Nm], Spring Return, AC 120 V, On/Off
Technical Specifications:
Actuator Type: Spring Return
Angle of Rotation: 95
Control Type: On/Off
Degree of Protection: IP54, NEMA 2, UL Enclosure Type 2
Direction of Rotation (Fail-Safe): Reversible With cw/ccw Mounting
Electrical Connection: Cable
Manual Override: External Push Button
Power Consumption (Holding): 3.5 W
Power Consumption (Running): 5.5 W
Running Time (Fail-safe): <25 s
Running Time (Motor): 75 s / 90°
Safety Function: YES
Shaft Diameter: 3/8...1/2" round, centers on 1/2"
Torque: 35 in-lb [4 Nm]
Voltage AC/DC: AC 120 V
Product & Technical Literature:
