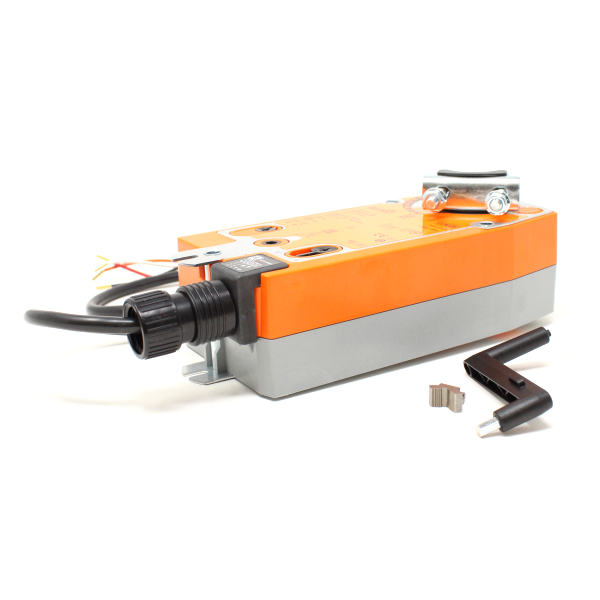

Belimo AFB24-SR Damper Actuator, 180 in-lb [20 Nm], Spring Return, AC/DC 24 V, 2... 10 V, Modulating

BelimoSKU: BEL-AFB24-SR

Price:
Sale Price$ 8,580.00 MXN
Description
Belimo AFB24-SR Damper Actuator, 180 in-lb [20 Nm], Spring Return, AC/DC 24 V, 2... 10 V, Modulating

Belimo AFB24-SR Damper Actuator, 180 in-lb [20 Nm], Spring Return, AC/DC 24 V, 2... 10 V, Modulating

Technical Specifications:

  • Actuator Type: Spring Return
  • Angle of Rotation: 95
  • Control Type: 2... 10 V
  • Degree of Protection: IP54, NEMA 2, UL Enclosure Type 2
  • Direction of Rotation (Fail-Safe): Reversible With cw/ccw Mounting
  • Electrical Connection: Cable
  • Manual Override: 5mm Hex Crank (3/16" Allen), Supplied
  • Power Consumption (Holding): 3 W
  • Power Consumption (Running): 5.5 W
  • Running Time (Fail-safe): <20 s
  • Running Time (Motor): 95 s / 90°
  • Safety Function: YES
  • Shaft Diameter: 1/2... 1.05" Round, Centers On 1/2" And 3/4" With Insert, 1.05" Without Insert
  • Torque: 180 in-lb [20 Nm]
  • Voltage AC/DC: 24 V

Product & Technical Literature:
