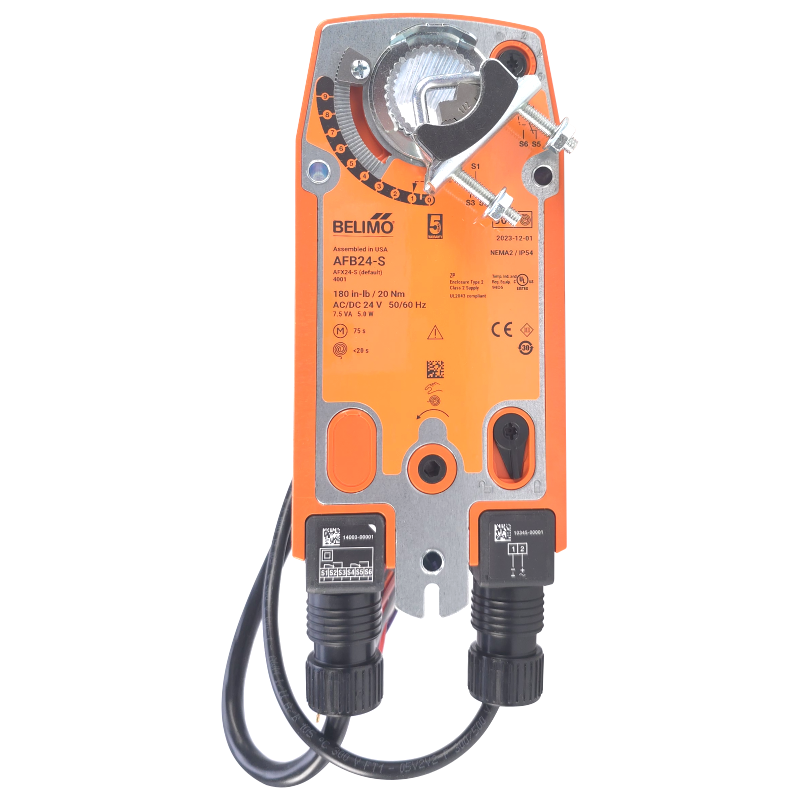

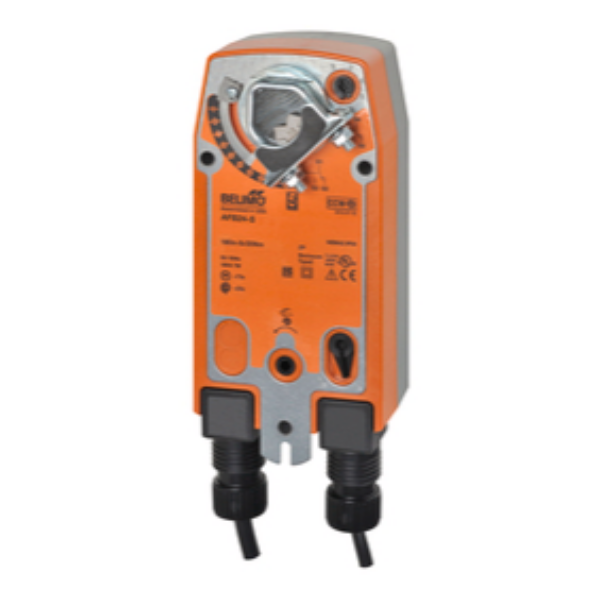

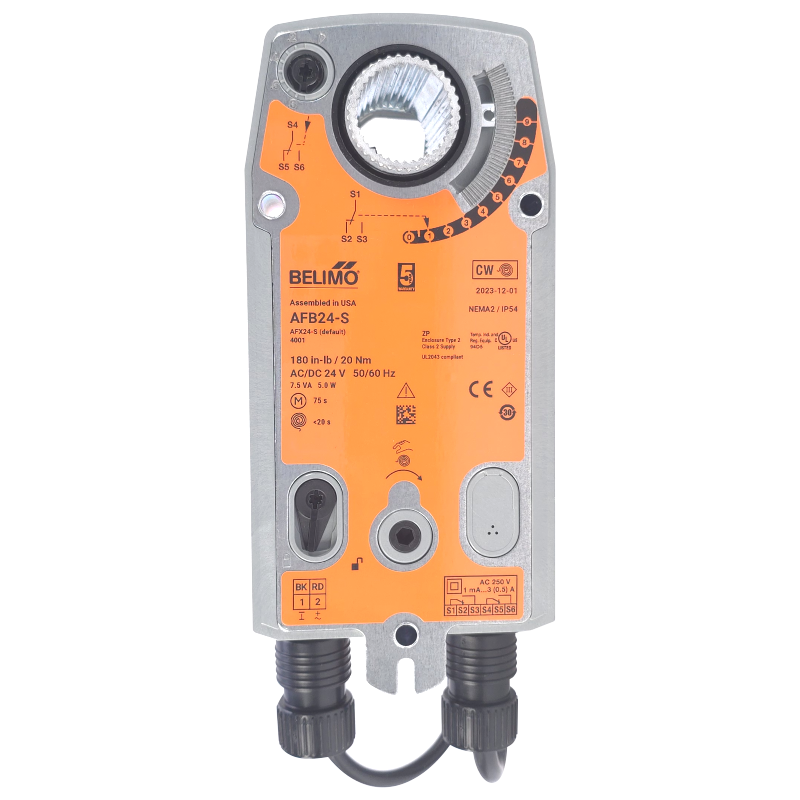

Belimo AFB24-S Damper Actuator, 180 in-lb [20 Nm], Spring Return, AC/DC 24 V, On/Off, 2x SPDT

BelimoSKU: BEL-AFB24-S

Price:
Sale Price$ 8,145.00 MXN
Description
Belimo AFB24-S Damper Actuator, 180 in-lb [20 Nm], Spring Return, AC/DC 24 V, On/Off, 2x SPDT

Belimo AFB24-S Damper Actuator, 180 in-lb [20 Nm], Spring Return, AC/DC 24 V, On/Off, 2x SPDT

Technical Specifications:

  • Voltage AC/DC: AC/DC 24 V
  • Power Consumption (Running): 5 W
  • Power Consumption (Holding): 2.5 W
  • Power Consumption For Wire Sizing: 7.5 VA
  • Auxiliary Switches: 2x SPDT
  • Torque: 180 in-lb [20 Nm]
  • Control Type: On/Off
  • Direction Of Motion Motor: selectable by ccw/cw mounting
  • Direction of Rotation (Fail-Safe): Reversible with cw/ccw mounting
  • Manual Override: 5 mm hex crank (3/16" Allen), supplied
  • Angle of Rotation: 95
  • Running Time (Motor): 75 s / 90°
  • Running Time (Fail-safe): <20 s
  • Protection Category: IP54
  • Degree Of Protection NEMA: NEMA 2
  • Enclosure Type: UL Enclosure Type 2
  • Ambient Temperature: -22...122°F [-30...50°C]

Product & Technical Literature:
