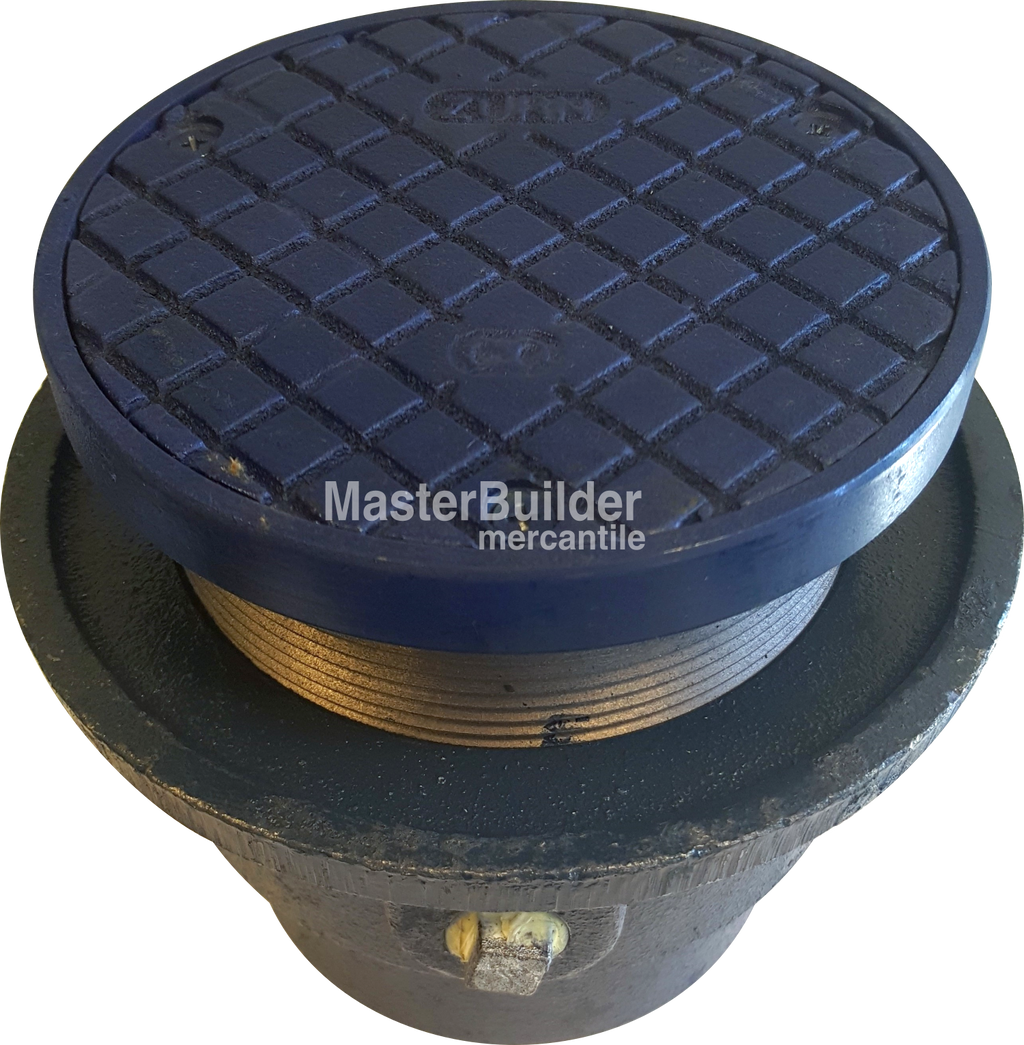

Zurn ZX1612 Adjustable Cast Iron Cleanout, Heavy-Duty Engineering Specification:
ZURN ZX-1612 Adjustable Floor Cleanout, Dura-Coated cast iron body with neoprene body sleeve, Dura-Coated cast iron adjustable head and gasketed, secured, scoriated heavy-duty cover with stainless steel screws.
Supplied with No-Hub connection outlet. Available for Pipe Sizes: 2" [51mm], 3" [76mm], 4" [102mm].
FEATURES & BENEFITS:
Dura-Coated cast iron body | Slab on grade drain no clamp required |
Heavy-duty ncast iron top assembly |
Technical Documentation:
Zurn ZX1612 Adjustable Cast Iron Cleanout, Heavy-Duty Specification Submittal: Click Here.
Zurn ZX1612 Adjustable Cast Iron Cleanout, Heavy-Duty DXF Drawing File: Click Here.
Cross Reference:
Zurn ZX1612 Adjustable Cast Iron Cleanout, Heavy-Duty Crosses:
- Ancon / Watts CO-200-RX-4, CO-202-RX-4, CO-203-RX-4, CO-204-RX-4
Sku Variants:
ZX1612-2NH (ZX-1612-2NH), ZX1612-3NH (ZX-1612-3NH), ZX1612-4NH (ZX-1612-4NH).
