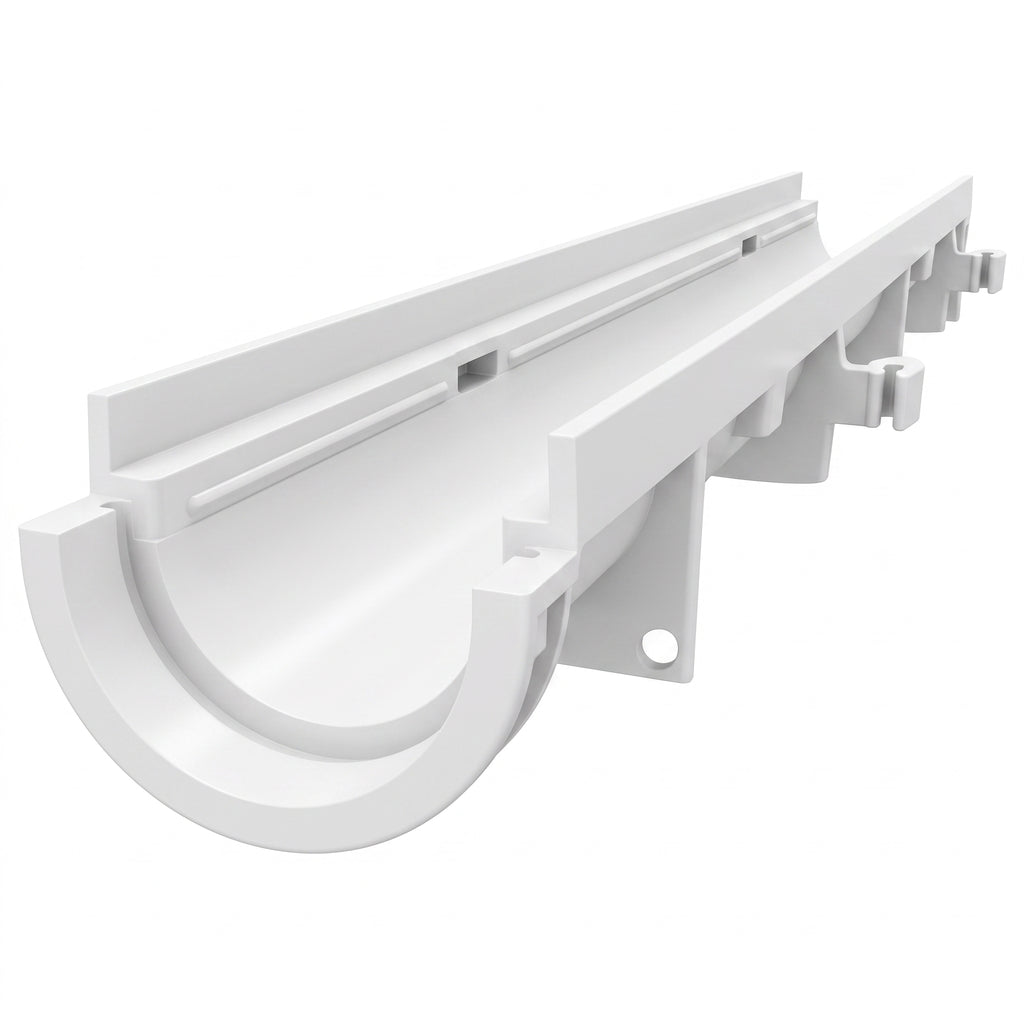

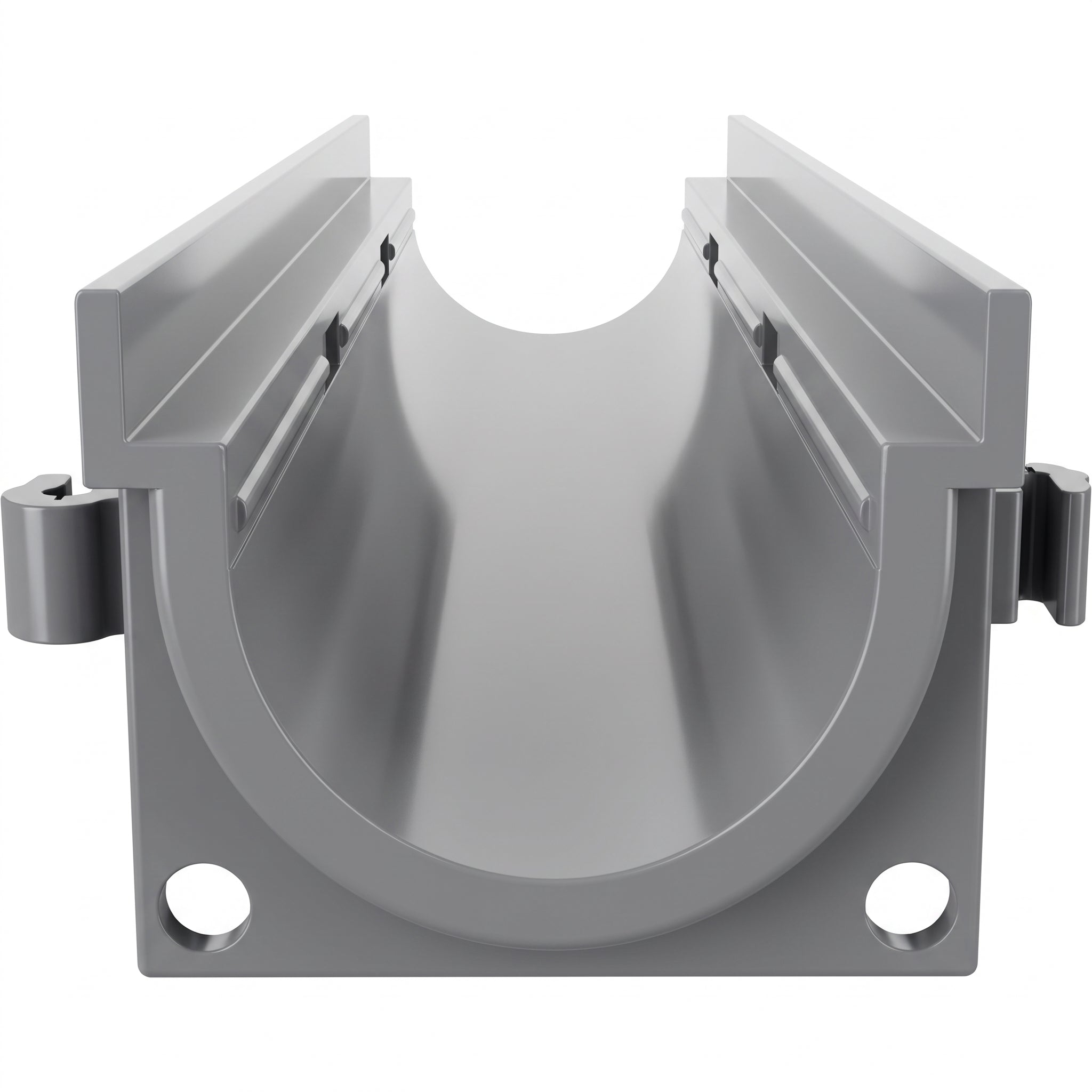

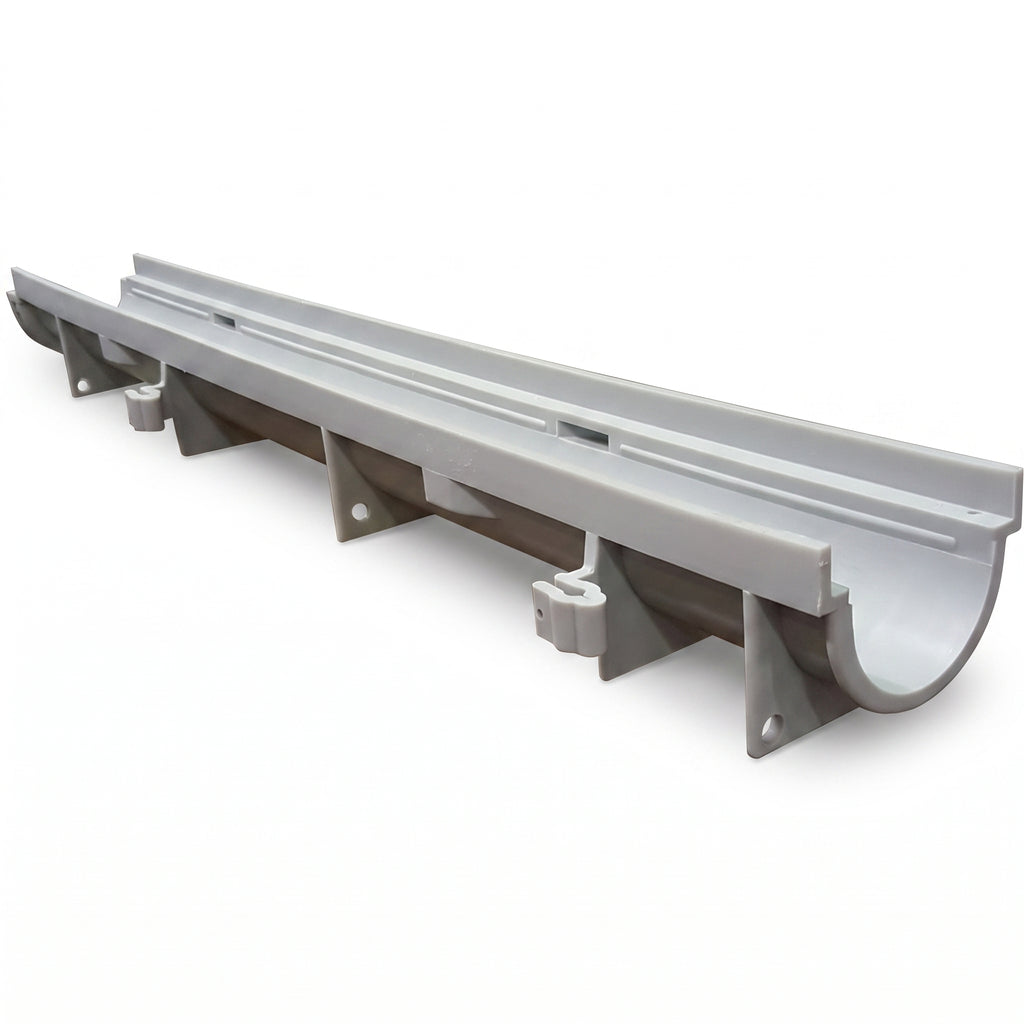

Zurn Z884 4-3/4" Wide Shallow Trench Drain Channel

Zurn Z884 4-3/4" Wide Shallow Trench Drain Channel, All Neutral Slope.

Engineering Specifications:

Channels shall be 40" [1016mm] long, 4-3/4" [121]mm wide reveal and have a 3-1/4" [83mm] throat. Modular channel sections shall be made of 0% water absorbent Polypropylene. Shall have a positive mechanical connection between channel sections that will not separate during the installation and shall mechanically lock into the concrete surround a minimum of every 10 [254]. Channels shall weigh less than 2 lbs.[.9kg] per linear foot, have a smooth, 1.634" [41.5mm] radiused self cleaning bottom with a Manning’s coefficient of .009 neutral 0% built in slope. Channels shall have rebar clips standard to secure trench in its final location.

Features & Benefits:

Technical Documentation:

Zurn Z884 4-3/4" Wide Shallow Trench Drain Channel Specification Submittal: Click Here.

Zurn Z884 4-3/4" Wide Shallow Trench Drain Channel Installation Instructions: Click Here.

Zurn Z884 4-3/4" Wide Shallow Trench Drain Channel Grate Options: Click Here.

Zurn Z884 4-3/4" Wide Shallow Trench Drain Channel HPP Grate Color Options: Click Here.

Zurn Z884 4-3/4" Wide Shallow Trench Drain Channel DWG Drawing File: Click Here.

Zurn Z884 4-3/4" Wide Shallow Trench Drain Channel Spec-Dec Brochure: Click Here.

Zurn Z884 4-3/4" Wide Shallow Trench Drain Channel Specified Decorative Systems Brochure: Click Here.

Zurn Z884 4-3/4" Wide Shallow Trench Drain Channel Specified Sport System Flyer: Click Here.

Grate Options:

• -BZ Bronze Decorative Grate - Class A
• -CG Cast Iron Slotted Grate - Class B
• -FG Fabricated Galvanized Steel Slotted Grate - Class A
• -FS Fabricated Stainless Steel Slotted Grate - Class A
• -HPP Heel-Proof Polyethylene Grate - Class A *
• -PG Perforated Galvanized Steel Grate - Class A
• -PS Perforated Stainless Steel Grate - Class A

Outlet Adapters:

• -E1 Close End Cap (Closes the Channel)
• -E2 2" [51mm] No-Hub End Outlet (If selected, each run requires one -E1, and one -E2)
• -U3 3" [76mm] No-Hub End Outlet (If selected, each run requires two -E1's, and one -U3)
• -GL Grate Lockdown Hardware

NOTE:

• Contact us for custom configurations, including cutting, 45's, 90's, Tee's, Side Outlet Fabs, Cross Fabs.
