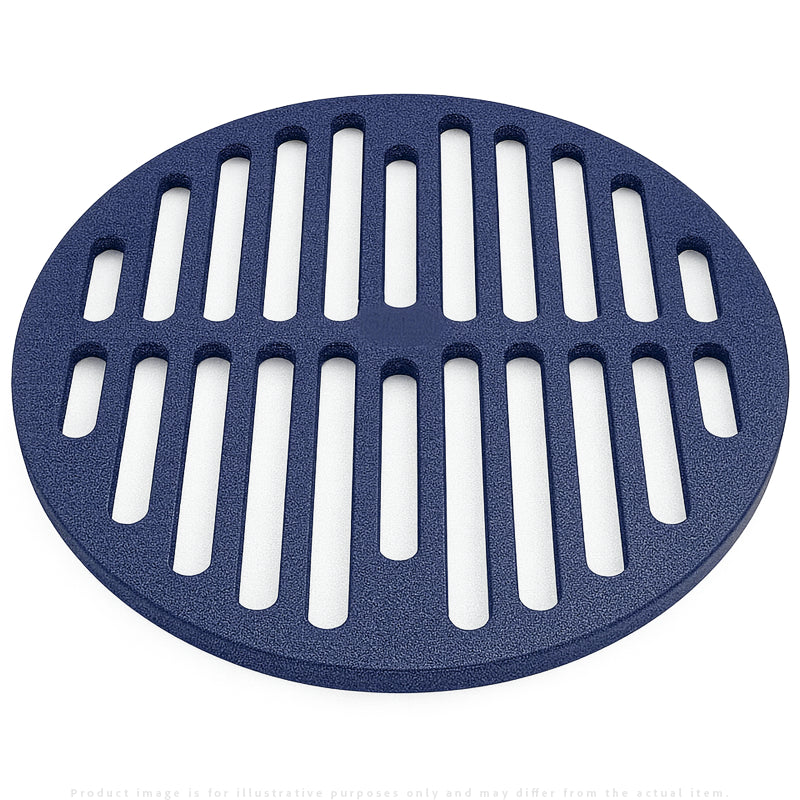

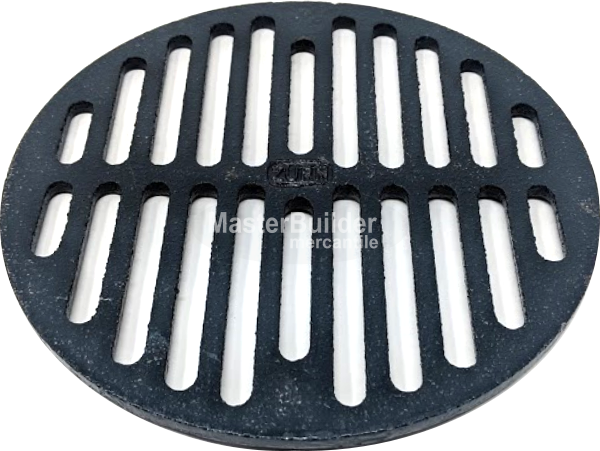

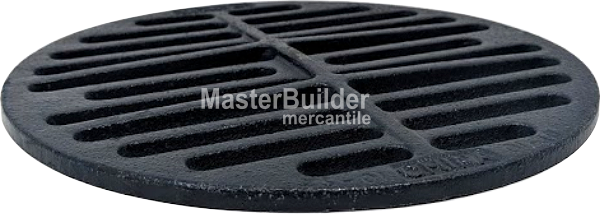

Zurn Z742-GRATE | P742-GRATE 38261-1 | 18694-1 | 38600-1 Replacement Round Floor Drain Grate for Z742 Series Connection Floor Drain.
Overview:
The Z742-GRATE, Casting Numbers 38261-1 | 18694-1 | 38600-1, are replacement floor drain grates for the Zurn Z742 Series Light-Duty Top Drain w/ Integral Double Wall Trap, Side Outlet, Backwater Valve. These grates repair the following drains:
Product Specification:
- Z742-2SP 2" Pipe Connection

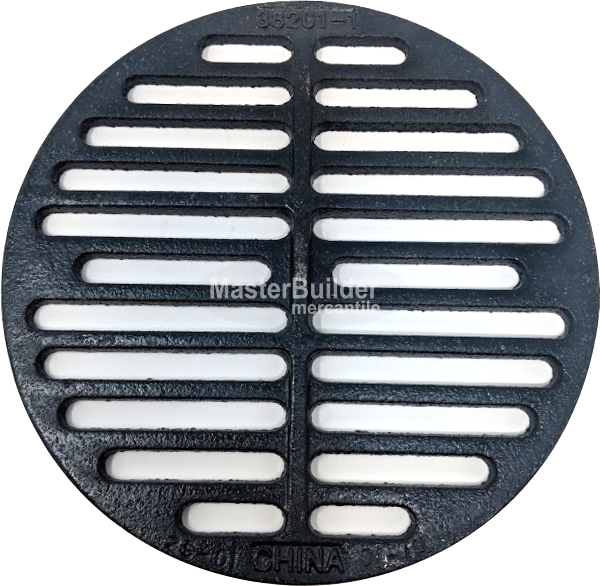

- Requires 38261-1 7" Diameter Grate
- Total Outside Diameter (incl. frame): 10-1/2"
- Actual Dimension ('B'): 7" (Diameter)
- Rim Thickness: 1/4"
- Material: Cast Iron (Dura-Coated)
- Grate Open Area Square Inches: 15
- Casting Number (Part Number): 38261-1
- Z742-3SP 3" Pipe Connection
- Requires 18694-1 9-3/8" Diameter Grate
- Total Outside Diameter (incl. frame): 10-1/2"
- Actual Dimension ('B'): 9-3/8" (Diameter)
- Rim Thickness: 1/2"
- Material: Cast Iron (Dura-Coated)
- Grate Open Area Square Inches: 19
- Casting Number (Part Number): 18694-1
- Z742-4SP 4" Pipe Connection
- Requires 38600-1 10-3/4" Diameter Grate
- Total Outside Diameter (incl. frame): 12"
- Actual Dimension ('B'): 10-3/4" (Diameter)
- Rim Thickness: 1/2"
- Material: Cast Iron (Dura-Coated)
- Grate Open Area Square Inches: 40
- Casting Number (Part Number): 38600-1
