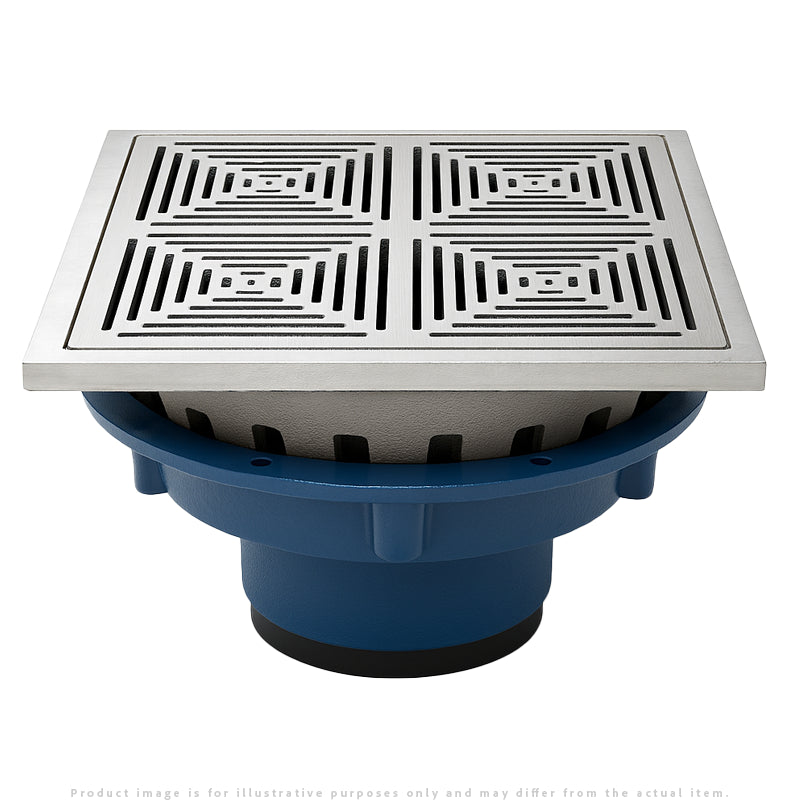

Zurn Z154-DT 12" Square Top Promenade Deck Drain with Decorative Heel-Proof Grate and Rotatable Frame ENGINEERING SPECIFICATION: ZURN ZN154-DT 12-5/8 [321] Square Top Prom-Deck drain, Dura-Coated cast iron body with rotatable square promenade frame with seepage openings, frame clamps and decorative light duty heel-proof grate with 3/16 [5] wide slots and nickel bronze veneer frame and grate.
Zurn Z154 Available As:
- ZB-154-DT (ZB154-DT): D.C.C.I. Body with Polished Bronze Top (Add 3/16 [5] to 2 [51] Dim & 5/8 [16] to 12 [305] Dim.)
- ZN-154-DT (ZN154-DT): D.C.C.I. Body with Polished Nickel Bronze Top (Add 3/16 [5] to 2 [51] Dim & 5/8 [16] to 12 [305] Dim.)
Technical Documentation:
Zurn Z154-DT 12" Square Top Promenade Deck Drain with Decorative Heel-Proof Grate and Rotatable Frame Specification Submittal: Click Here.
Zurn Z154-DT 12" Square Top Promenade Deck Drain with Decorative Heel-Proof Grate and Rotatable Frame DWG Drawing File: Click Here.
Cross Reference:
Zurn Z154 12" Square Top Promenade Deck Drain with Heel-Proof Grate and Rotatable Frame Crosses:
- ZN154 = Ancon / Watts: RD-100-CP-1, RD-102-CP-1, RD-103-CP-1, RD-104-CP-1, RD-106-CP-1.
