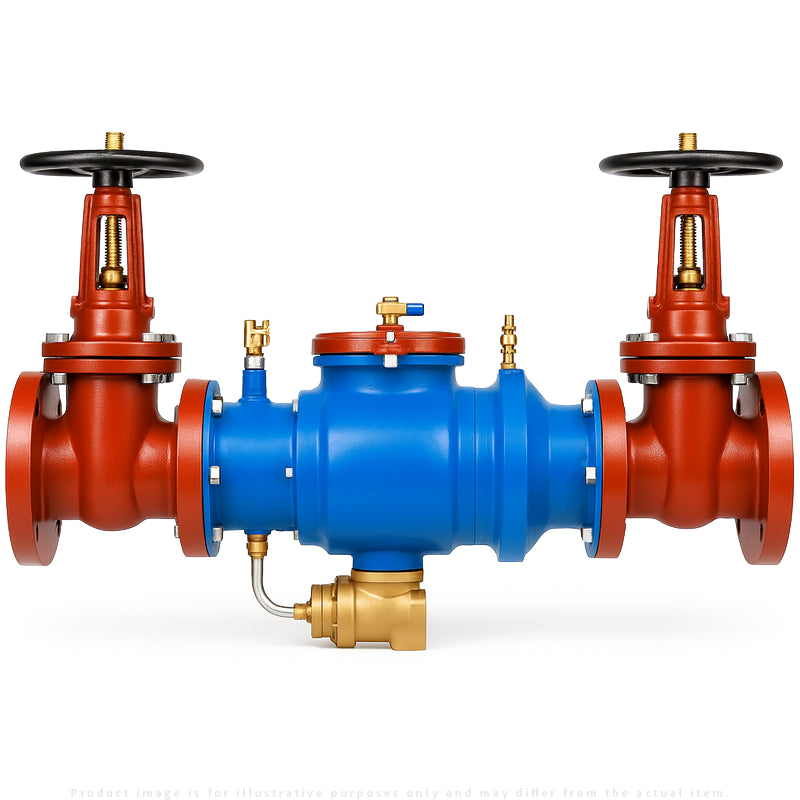

Zurn Wilkins 4-375OSY 4" Reduced Pressure Principle Assembly (RP) Open Stem & Yoke Lead-Free

Roll over image to zoom in Click on image to zoom

Zurn Wilkins 4-375OSY 4" Reduced Pressure Principle Assembly (RP) Open Stem & Yoke Lead-Free

Name: Zurn Wilkins 4-375OSY 4" Reduced Pressure Principle Assembly (RP) Open Stem & Yoke Lead-Free
Brand: Zurn Wilkins
SKU: ZUR-4-375OSY
Price: 91438.0 MXN
Availability: InStock

Zurn WilkinsSKU: ZUR-4-375OSY

Price:

$ 91,438.00 MXN

Quantity:

Share this product

Zurn Wilkins 4-375OSY 4" Reduced Pressure Principle Assembly (RP), Open Stem & Yoke Gate Valves, Lead-Free, Flange x Flange Connection.

Product Overview:

The Zurn Wilkins 4-375OSY Reduced Pressure Principle Backflow Preventer provides high hazard protection for all applications. The flanged, epoxy coated ductile iron body is available with multiple shut-off valve options for installation versatility.

Features & Benefits:

4" reduced pressure principle assembly with OS&Y gate valves
Short lay-length for small space installation
Ideal for any backflow replacement
Utilizes Zurn Wilkins low headloss compound check for reliable and superior performance
No threads or taps in body or cover, eliminating exposure to corrosion
Single access cover reduces downtime
NRS (standard), OS&Y, or Butterfly shut-off valves available
Available in flanged, grooved, or grooved x flanged end connections for installation versatility.

Product Specifications:

The Reduced Pressure Principle Backflow Prevention Assembly shall be certified to NSF/ANSI 61, ASSE® Listed 1013, and supplied with full port gate valves. The main body and access cover shall be epoxy coated ductile iron (ASTM A 536), the seat ring and check valve shall be NORYL™, the stem shall be stainless steel (ASTM A 276) and the seat disc elastomers shall be EPDM. The checks and the relief valve shall be accessible for maintenance without removing the device from the line. The Reduced Pressure Principle Backflow Prevention Assembly shall be a ZURN WILKINS Model 37

Application:

Designed for installation on potable water lines to protect against both backsiphonage and backpressure of contaminated water into the potable water supply. The Model 375 provides protection where a potential health hazard exists. Ideal for use where lead-free* valves are required.

Standards Compliance (Horizontal & Vertical):

ASSE® Listed 1013
IAPMO® Listed
CSA® Certified B64.4 (2 1/2" thru 8")
AWWA Compliant C511, and C550
FM® Approved
UL® Classified
C-UL® Classified
NYC MEA 49-01-M Vol 2 • Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California.
Meets the requirements of NSF/ANSI 61* (0.25% MAX. WEIGHTED AVERAGE LEAD CONTENT)

Materials:

Main Valve Body: Ductile Iron ASTM A 536
Access Covers: Ductile Iron ASTM A 536
Coatings: FDA Approved Electrostatic Epoxy Finish
Internals: Stainless Steel, 300 Series NORYL™, NSF Listed
Fasteners: Stainless Steel, 300 Series
Seal Rings: EPDM (FDA approved)
O-rings: Buna Nitrile (FDA approved)
Sensing Line: Stainless Steel, Braided Hose

Features:

Sizes: 2 1/2"*, 3"*, 4", 6", 8", 10"
Maximum Working Water Pressure: 175 PSI
Maximum Working Water Temperature: 140°F
Hydrostatic Test Pressure: 350 PSI
End connections:

(Grooved for steel pipe) AWWA C606
(Flanged) ANSI B16.1 Class 125

Typical installation:

Local codes shall govern installation requirements. Unless otherwise specified, the assembly shall be mounted at a minimum of 12" (305mm) and a maximum of 30" (762mm) above adequate drains with sufficient side clearance for testing and maintenance. The installation shall be made so that no part of the unit can be submerge
