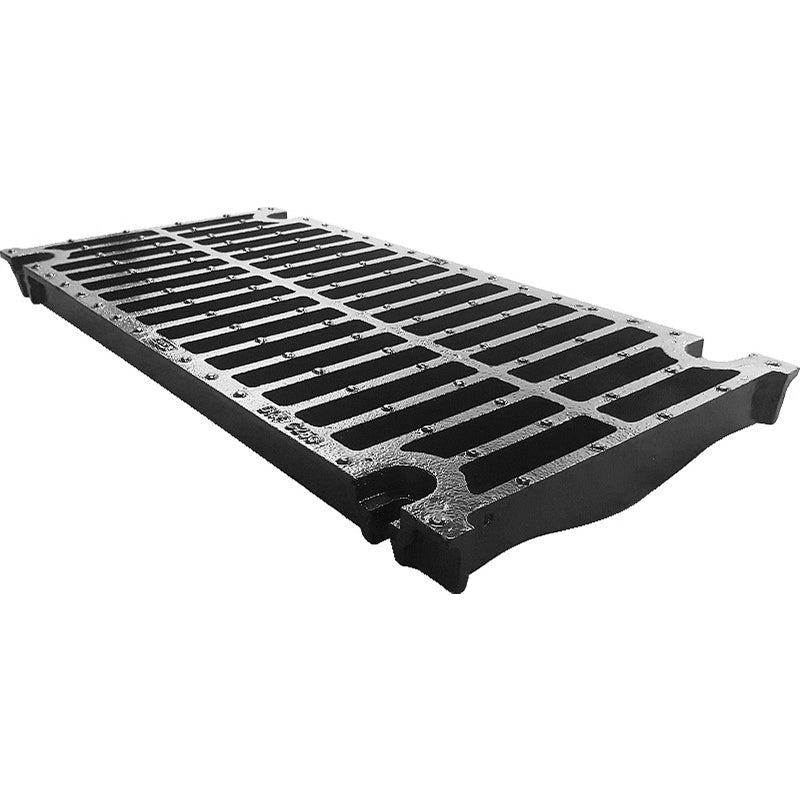

Zurn P12-DGC 12" x 24" Ductile Cast Iron Slotted Grating, Class 'C'
Product Specification:
The Zurn P12-DGC Slotted Grate, Ductile Iron, is 11-1/4 inches wide by 24 inches long, weighing 14.7 lbs per linear foot. The grate has an open area of 86.7 square inches per linear foot, DIN Rating of C, ANSI Rating of Heavy-Duty, H-20 Load Rated.
Technical Specification:
Material: | Ductile Iron |
DIN Rating: | Class C |
Weight: | 14.7 lbs/ft. |
Open Area: | 86.7 in2/ft. |
ANSI Rating: | Heavy-Duty |
Application: | Vehicle & Truck |
Slot Width/Hole Size: | 63/64" |
ADA: | No |
H-20: | Yes |
FAA: | No |
Technical Downloads:
- Zurn P12-DGC: Specification Submittal
- Zurn Z882 Series Trench Drain: Specification Submittal
- Zurn Z882 Series Trench Drain: Grate Guide
- Zurn Z882 Series Trench Drain: Installation Instructions
