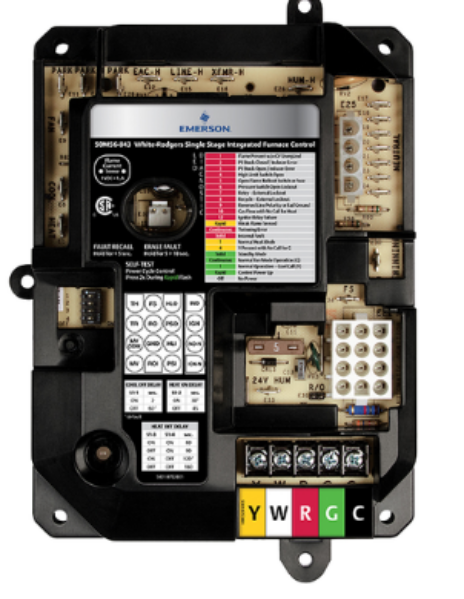

White Rodgers 50M56U-843 Universal Single Stage Integrated Furnace Control

White RodgersSKU: WHR-50M56U-843

Price:
Sale Price$ 4,586.00 MXN
Description
White Rodgers 50M56U-843 Universal Single Stage Integrated Furnace Control

White Rodgers 50M56U-843 Universal Single Stage Integrated Furnace Control

Features:

  • 3-Speed Fan that Cools, Low Heat and High Heat
  • Universal Hotrod Nitride Igniter Kit
  • 9 Quick Select/Quick Connect Wiring Harnesses
  • Red LED Diagnostic Flash Codes with Stored Fault Recall
  • Low Voltage Fuse Protection, 3 Amp Replaceable Automotive Type
  • Humidifier and Electronic Air Cleaner Connections

Specifications:

      • Ignition Furnace Control Kit
      • Type Universal, 1-Stage
      • Fuel Type Natural, Manufactured, Mixed, Liquefied Petroleum and Liquid Propane Gas Air Mixture
      • Ignition Source Carbide and Nitride Igniter
      • Prepurge Time 30 Second
      • Flame Failure Response Time 2 Second
      • Valve Rating 1.5 Amp at 25 Volt AC 50/60 Hertz
      • Power Rating 25 Volt AC at 50/60 Hertz
      • Size 5.25 Inch Width x 1.25 Inch Depth x 7 Inch Height
      • Temperature Rating -40 to 176 Deg F
      • Application Furnace
      • Maximum Input Current 0.45 Amp at 25 Volt AC
      • Igniter Relay Rating 6 Amp at 120 Volt AC at 50/60 Hertz (Resistive)
      • Inducer Relay Rating 2.2 FLA to 3.5 LRA at 120 Volt AC
      • Circulator Relay Rating 14.5 FLA to 25 LRA at 120 Volt AC
      • Mounting Type Surface
      • Delay Timing 30 Second (Heat/ON), 100/150 Second (Heat/OFF), 6 Second (Cool/ON), 45 Second (Cool/OFF)
      • Includes Module, Wiring Harness, Hot Rod Igniter Kit
