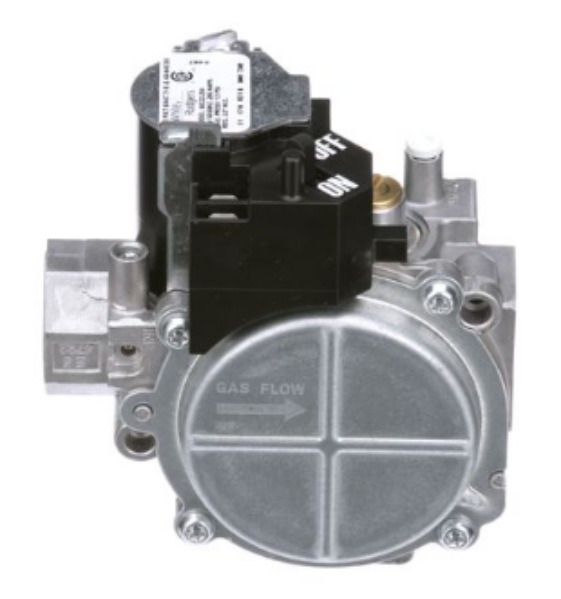

White Rodgers 36G22-254 Universal NPT Gas Valve 24V

White RodgersSKU: WHR-36G22-254

Price:
Sale Price$ 1,604.00 MXN
Description
White Rodgers 36G22-254 Universal NPT Gas Valve 24V

White Rodgers 36G22-254 Universal NPT Gas Valve 24V

Features:

  • Quiet Redundant
  • Built-In Pressure Tap
  • Quick-Connect Terminals
  • Electric On-Off Switch and Convenient Quick Connect Coil Terminals and Built-In Pressure Taps
  • Tamper Resistant Screw and Controlled Gasket Compression to Withstand High Inlet Pressures
  • Mounts in any Position Including Upside Down

Specifications:

      • Combination Gas Valve
      • Type 1-Stage, Fast Open, Straight, Through Wiring
      • Nominal Size 1/2 Inch
      • End Connection Female Threaded x Female Threaded
      • Input Supply Rating 24 Volt AC at 50/60 Hertz 0.3 Amp
      • Temperature Rating -40 to 175 Deg F
      • Pressure Rating 1/2 PSI
      • Inclusions/Features Convertible Natural/Liquid Propane, Inlet/Outlet Pressure Tap, Filter Screen
      • Exclusions Liquid Propane Conversion Kit, Reducer Bushing Kit
      • Application Electronic Ignition System
      • Applicable Standard CSA (Canada and US)
      • Fuel Type Natural/Liquid Propane
      • Pilot Gas Connection 1/4 Inch Compression Fitting
      • Pressure Tap Connection 1/8 Inch Threaded
      • Capacity 140000 BTU/Hour (Natural Gas), 226800 BTU/Hour (Liquid Propane Gas)
      • Regulator Setting 3.5 Inch
      • Regulator Adjustment Range 2.5 to 5 Inch (Natural), 7 to 12 Inch (Liquid Propane)
