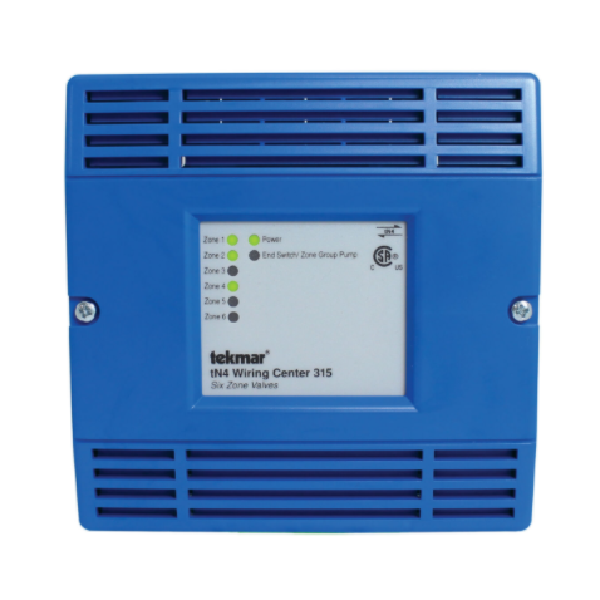

Tekmar 315 TEKNET - tN4 Wiring Center - Six Zone Valves

TekmarSKU: TEK-315

Price:
Sale Price$ 7,085.00 MXN
Description
Tekmar 315 TEKNET - tN4 Wiring Center - Six Zone Valves

Tekmar 315 TEKNET - tN4 Wiring Center - Six Zone Valves

    Features:

    • Isolated end switch
    • Zone group pump output
    • External diagnostic LEDs
    • CSA C US Certified for use in USA and Canada
    • Six 24 V (ac) powered zone outputs
    • For use with tekmarNet® 4 thermostats
    • tN4 expansion terminals

    Specifications:

    • Agency Approvals CSA C US, meets class B: ICES & FCC Part 15
      Ambient Conditions Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing
      Control Type Microprocessor control, this is not a safety (limit) control
      Dimensions 5.5" H x 5.5" W x 2.25" D (140 x 140 x 57 mm)
      Enclosure Material Blue PC+ABS plastic
      Enclosure NEMA Rating NEMA 1
      End Switch Relay 24 V (ac) 2 A
      Power Supply 24 V (ac) plus / minus 10 percent, 60 Hz, 3 VA min, 98 VA max, Class 2
      Zone Group Pump 115 V (ac) 5A, 1/6 hp
      Zone Valve Load 24 V (ac) 2 A, maximum combined current (zones 1 to 4): 4 A
      Zoning - Thermostat Type tN2 Wiring Center



    Installation Manual
