Description

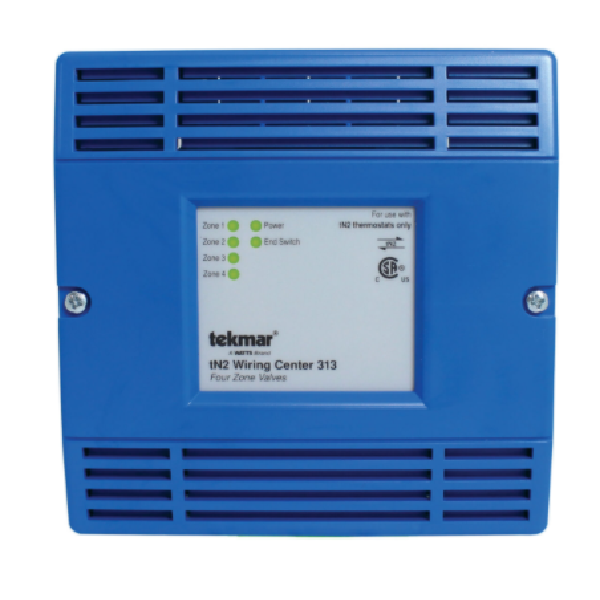

Tekmar 313 TEKNET - tN2 Wiring Center - Four Zone Valves
Features:
- CSA C US certified for use in USA and Canada
- Powered zone group pump output
- External diagnostic LEDs
- tN4 expansion terminals
- Supports two-stage tekmarNet® 2 thermostats
- Outdoor sensor input
- Only requires 2 wires per zone, four 24 V (ac) powered zone outputs
- For use with tekmarNet® 2 thermostats only
- Isolated end switch
Specifications:
-
Agency Approvals CSA C US, meets class B: ICES & FCC Part 15 Ambient Conditions Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing Control Type Microprocessor control, this is not a safety (limit) control Dimensions 5.5" H x 5.5" W x 2.25" D (140 x 140 x 57 mm) Enclosure Material Blue PC+ABS plastic Enclosure NEMA Rating NEMA 1 End Switch Relay 24 V (ac) 2 A Power Supply 24 V (ac) plus / minus 10 percent, 60 Hz, 3 VA min, 99 VA max, Class 2 Sensor NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892 Zone Group Pump 115 V (ac) 5 A Zone Valve Load 24 V (ac) 2 A, maximum combined current (zones 1 to 4): 4 A Zoning - Thermostat Type tN2 Wiring Center
Installation Manual
