Tekmar 294EXP Smart Boiler Control Expansion Module, Four tN4, Up to 16 Boilers, 3-Wire Communication

TekmarSKU: TEK-294EXP

Price:
Sale Price$ 24,955.00 MXN
Description

Tekmar 294EXP Smart Boiler Control Expansion Module, Four tN4, Up to 16 Boilers, 3-Wire Communication.

Product Overview:

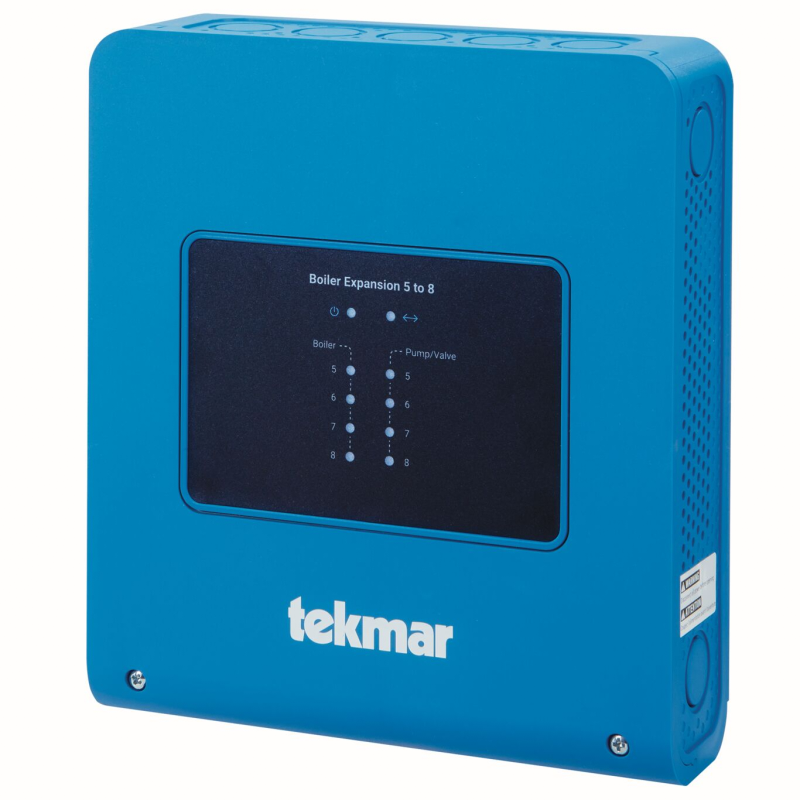

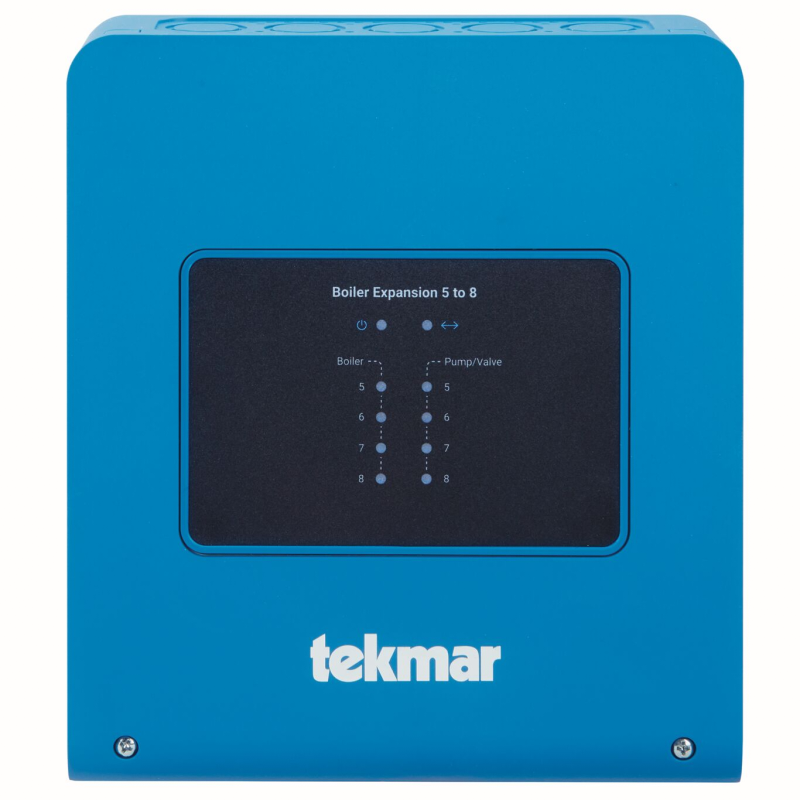

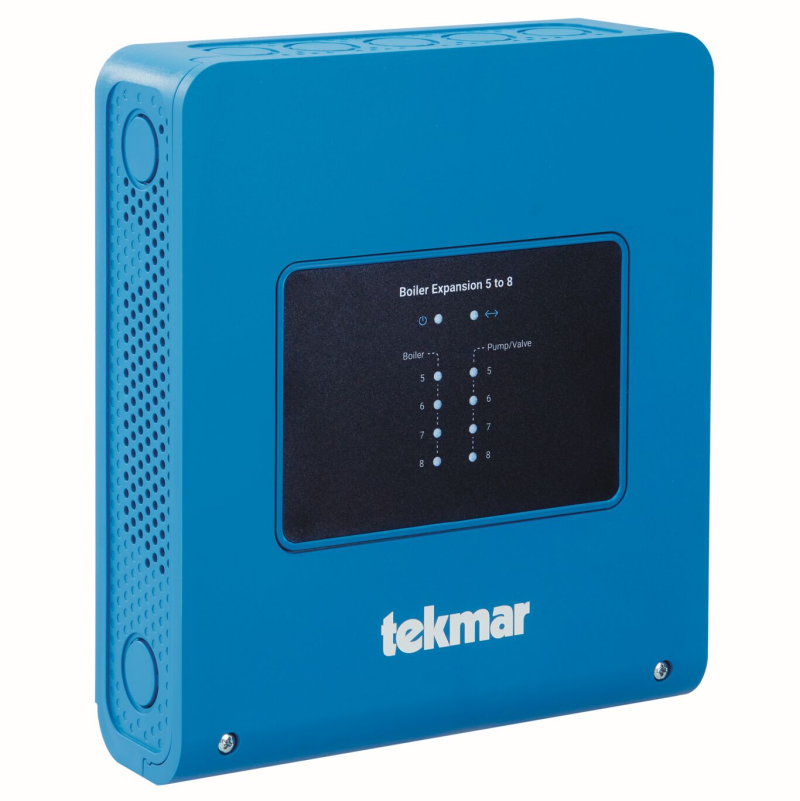

The Smart Boiler Expansion 294EXP expands the Smart Boiler Control 294 in groups of four boilers up to a maximum of sixteen boilers. The 294EXP connects to the Smart Boiler Control 294 through a three-wire communication cable.

Features:

  • LED status indicators for power, communication, each boiler and pump/valve
  • Expansion for 4 boilers
  • 3-wire communication
  • Boiler configuration selected by DIP switches

Specifications:

Agency Approvals CSA C US, FCC Part 15B, ICES-003 Class A
Ambient Conditions Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), less than 90 percent RH Non-condensing, Altitude < 6560 feet (2000 m), Installation Category II, Pollution Degree 2
Dimensions 9" H x 8" W x 2-11/32" D (229 x 203 x 60 mm)
Enclosure Material Blue ABS plastic
Enclosure NEMA Rating NEMA 1
Modulating Output 0-10 V (dc) 500 ohms minimum load impedance / 4-20 mA 1 k ohms max load impedance
Power Supply 115 V (ac) plus / minus 10 percent, 60 Hz, 6W
Pump Relay 230 V (ac), 5A, 1/3 hp
