Description

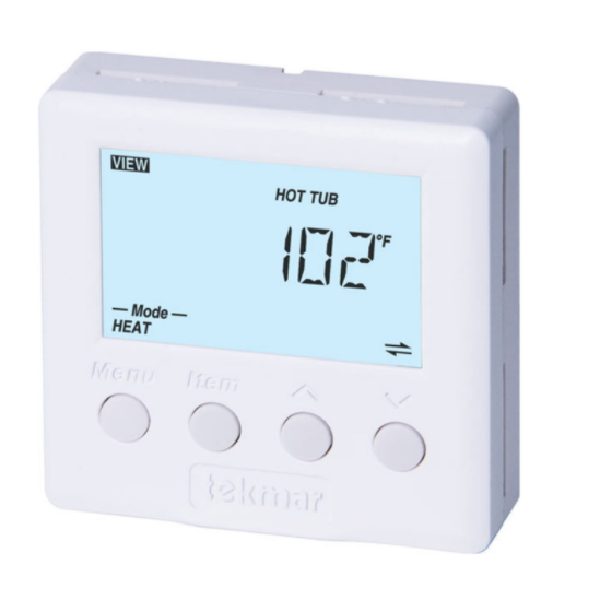

Tekmar 162 Control - TekmarNet® 4 Setpoint - One Stage Heat/Cool
Features:
- Hot tub operation, DHW tank operation
- WWSD (if connected to tekmarNet® network with outdoor sensor)
- Exercising, scenes supported
- Temperature sensor input, programmable Setback Schedule
- Floor operation, pool operation
- Pulse width modulation, system pump control
- tekmarNet® 4 and tekmarNet ® 2 compatible, on / off differential
- CWSD (if connected to tekmarNet® network with outdoor sensor)
- One stage heat or cool, 5 different levels of priority
Specifications:
- Agency Approvals - CSA C US, meets class B: ICES & FCC Part 15
- Ambient Conditions - Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 92 percent to 104 degrees F (40 degrees C), and 50 percent above 104 degrees F (40 degrees C), Altitude less than 9840 ft. (3000 m), Pollution Degree 2
- Control Type - Microprocessor control, this is not a safety (limit) control
- Dimensions - 2-7/8" H x 2-7/8" W x 13/16" D (73 x 73 x 21 mm)
- Enclosure Material - White PVC plastic
- Enclosure NEMA Rating - NEMA 1
- Hydronic - HVAC Control Type - tekmarNet4 Setpoint Control
- Power Supply - 24 V (ac) plus / minus 10 percent, 50/60 Hz, 3.2 VA, NEC / CEC Class 2
- Relay - 24 V (ac) 2 A
- Sensor - NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta=3892
Installation Manual
