Description

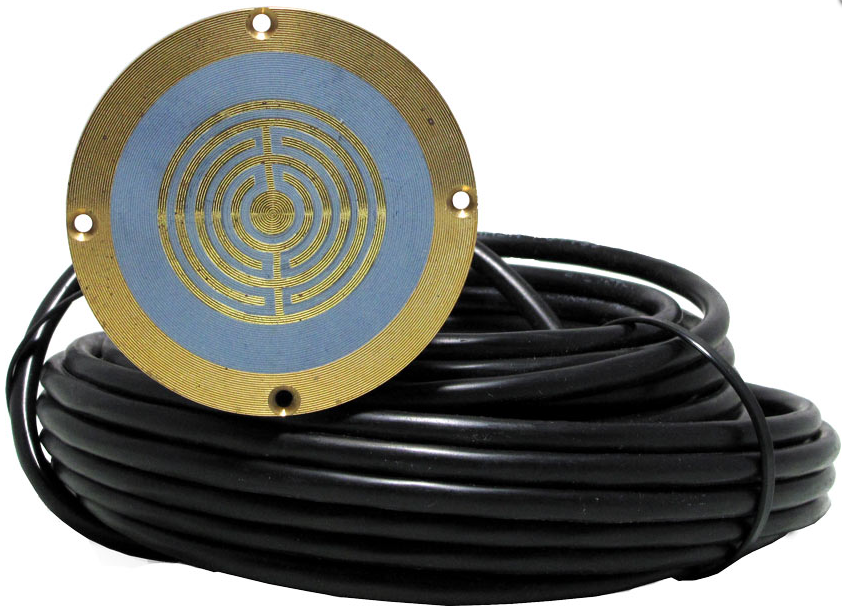

Tekmar 090 Snow/Ice Sensor In-Slab
Features:
-
65 ft (20 m) of cable
-
Designed for long life in driveway and walkway installations
-
Slab temperature sensing
-
Automatic snow/ice detection
-
Long wire included so in field splicing is not necessary
Specifications:
- Packaged Weight - 4.4lb
- Dimensions - 1-3/4" H x 3-7/16" OD (45 mm H x 87 mm OD)
- Sensor Materials - Silicon brass, 65 ft. (20 m) 5 conductor stranded wire with polyethylene jacket
- Approvals - CSA C US
- Operating Range - -30 to 170°F (-34 to 77°C)
- Load Rating - 15,000 lb (66,723 N) distributed load, non-impact, installed in concrete according to the manual
- Included - 4 #4-40, 7/16" machined, stainless steel screws - 4 #6-32, 3/8" flathead, slotted, stainless steel screws
- Warranty - Limited 3 Year Warranty
Installation Manual
