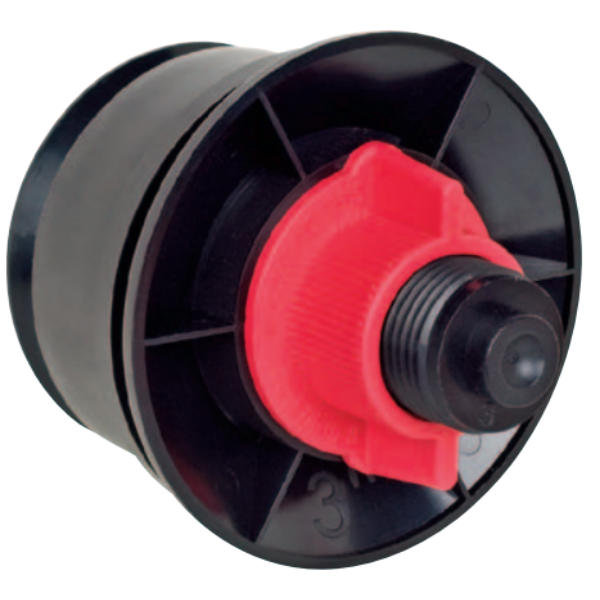

Sioux Chief 882-41 TestTitan™ 4" Pipe and Cleanout Test Plug

Sioux ChiefSKU: SIO-882-41

QUANTITY: SINGLE UNIT
Price:
Sale Price$ 355.00 MXN
Description



Sioux Chief 882-41 TestTitan™ 4" Pipe and Cleanout Test Plug.

Features & Benefits:

  • Proven performance, improved design
  • For use in both pipe end and cleanout threads – size specific
  • Hollow, male hose thread stem allows for fill/drain through the plug
  • Non-slip shoulder prevents spinning
  • 100% non-corrosive, strong and durable

Specification:

Sioux Chief 882 series Test Titan mechanical test plug shall be used for open end closure of installed piping, sealing cleanout threads or to secure piping from contaminants during normal construction process.

Materials:

  • Stem, Base & Disc: ABS
  • Nut: PolyPro
  • Gasket: PVC

Installation:

Insert plug into end of pipe or threaded opening, size specific, to shoulder of gasket. Turn nut clockwise to tighten gasket until desired compression is achieved. Finish tightening with pliers if needed.

Safe Working Loads:

Blow out PSI per size/style:

  PIPE CLEANOUTS
1-1/2" 40 40
2" 30 30
3" 20 20
3-1/2" N/A 25
4" 10 15

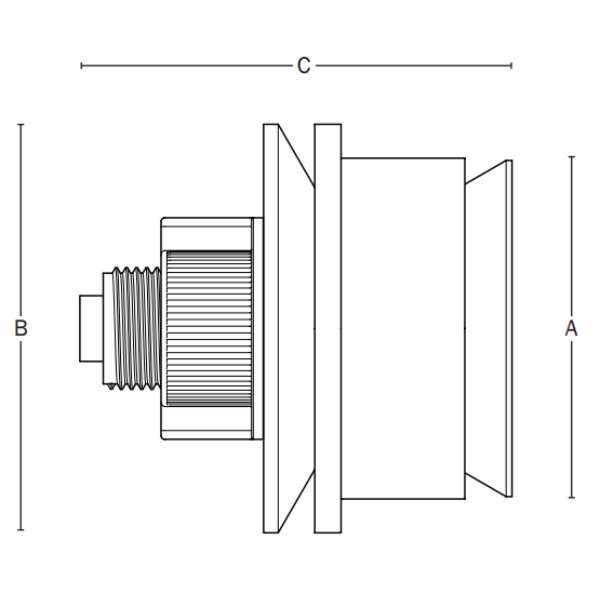

Dimensions:

A: Nominal Diameter 1.5" 2" 3" 4"
B: Overall Diameter 1.9" 2.375" 3.5" 4.4"
C: Overall Depth 3.7" 3.7" 3.7" 3.7"


Technical Downloads:
