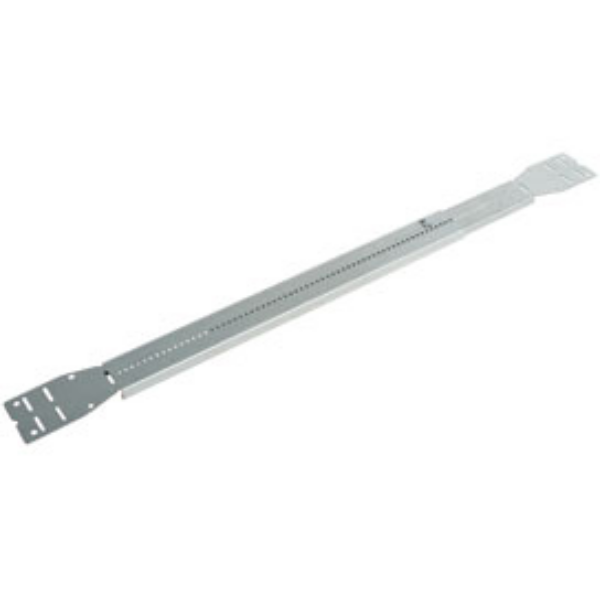

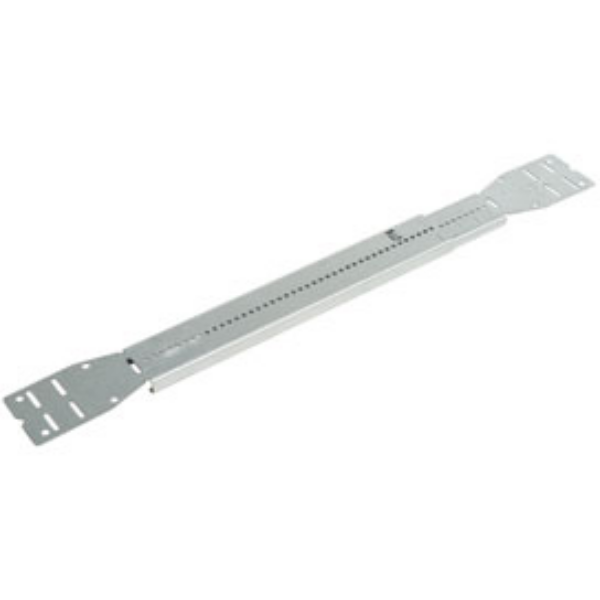

Sioux Chief 520-6 Series WiderSlider™ Adjustable Stub Out Brackets

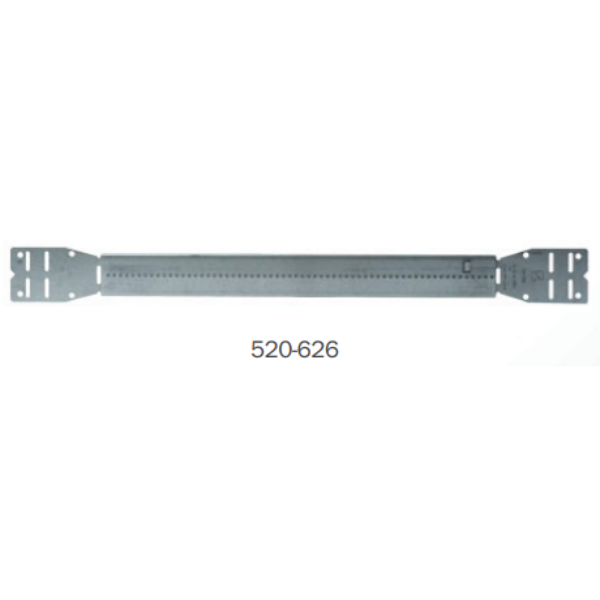

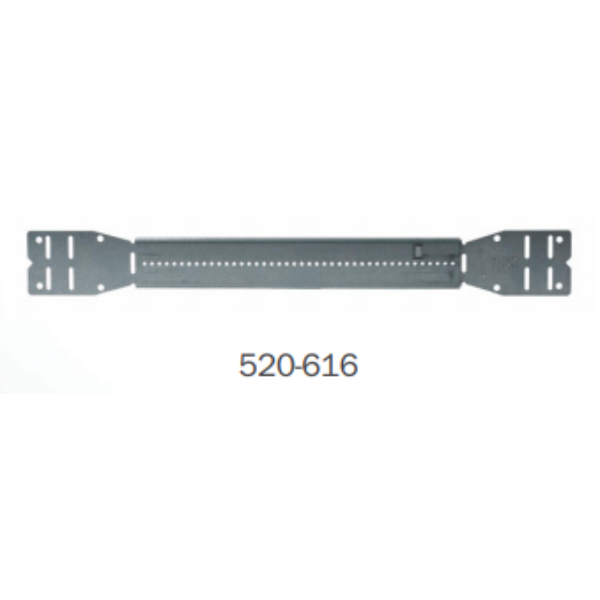

Sioux Chief 520-616 520-626 WiderSlider™ Adjustable Stub Out Brackets.

Features & Benefits:

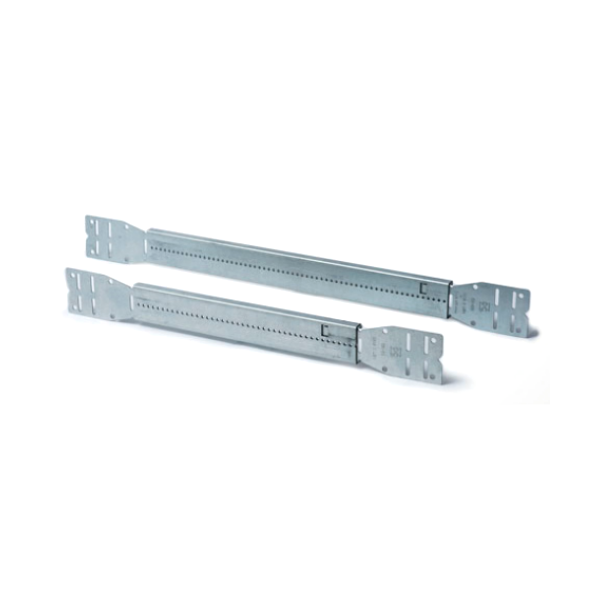

• Available in two lengths for 16” or 24” stud bays
• 1-3/8” wide x 22-ga. high quality G90 galvanized steel
• Pilot holes for standard DE 90s and wide enough for securing 3-ear DE 90s
• Eliminates cutting and fabricating metal studs or wood blocks
• Pre-dimensioned hash marks for quicker, more precise installations
• Pre-assembled and fully adjustable with interlocking tab to secure safe overlap and prevent disassembly
• Mount to face of studs or bend tabs to recess at 3/4", 1-1/2” or 2-1/2” depths within stud cavity
• USER FRIENDLY:

• Pilot holes allow for faster 2-eared DE-90 installations when a 3-eared DE-90 is preferred, secure the fitting with self-tapping screws.
• Each bracket has pre-dimension hash marks for more precise installations and the tabs are easily bendable offering 3/4", 11/2" or 2⅛" depths within the stud cavity.
• PRE-ASSEMBLED:
• Pre-assembled and fully adjustable with interlocking tab to secure safe overlap and prevent disassembly. Available in two lengths for 16" and 24" stud bays.
• DURABLE & RELIABLE:
• WiderSlider™ adjustable brackets are 1⅜" wide × 22-gauge high quality G90 pre-galvanized steel. Best of all, they’re made in the USA.

Product Specification:

Sioux Chief 520-616 | 520-626 series WiderSlider™ adjustable bracket shall be used where necessary to support drop-ear 90 fittings, tube clamps, tube straps and electrical boxes. All installations shall comply with local or national codes. Brackets shall be UPC IAPMO Listed. Bracket shall be corrosion resistant.

• MATERIALS: 22 gauge G90 galvanized steel
• LOAD-RATING: Maximum Load: 25 lbs.

Installation:

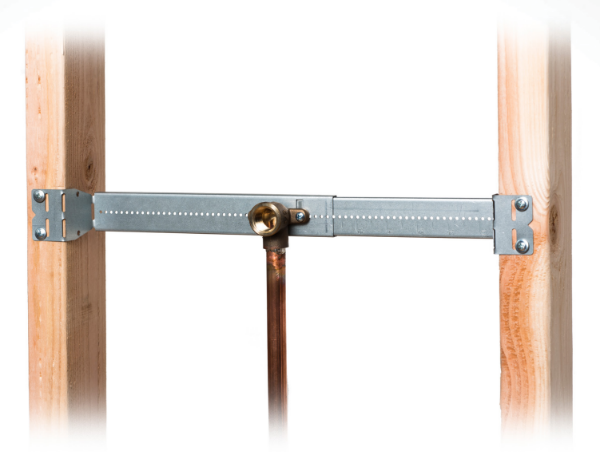

Bend tabs to accommodate 3/4", 1-1/2" or 2-1/8" depths from face of stud. Secure bracket within stud bay or floor joist with at least 4 screws (not included). Secure DE90 elbow, pipe clamps, tube straps or electrical outlet boxes directly to bracket using self-tapping screws (not included).
