MIFAB RTS5-1 Retrofit Floor Drain Top Set Grate and Frame

MifabSKU: MIF-RTS5-1

Price:
Sale Price$ 4,568.00 MXN
Description

MIFAB RTS5-1 Retrofit Floor Drain Top Set Grate and Frame.

Product Overview:

Make your existing floor drain grate level with the floor by using this innovative drain solution by MIFAB.

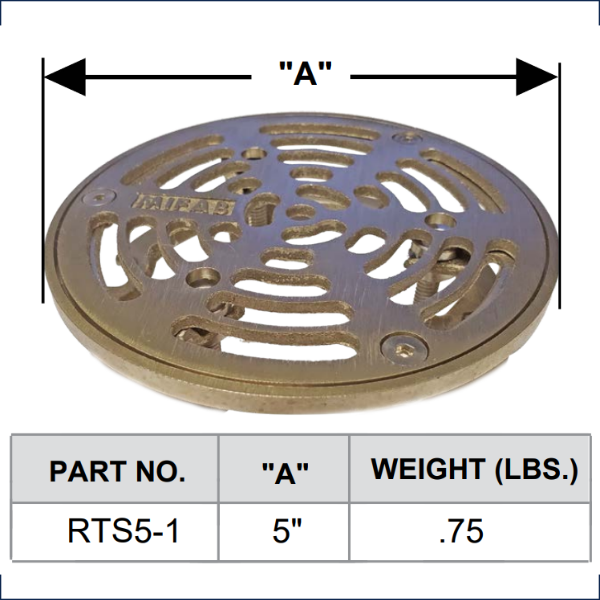

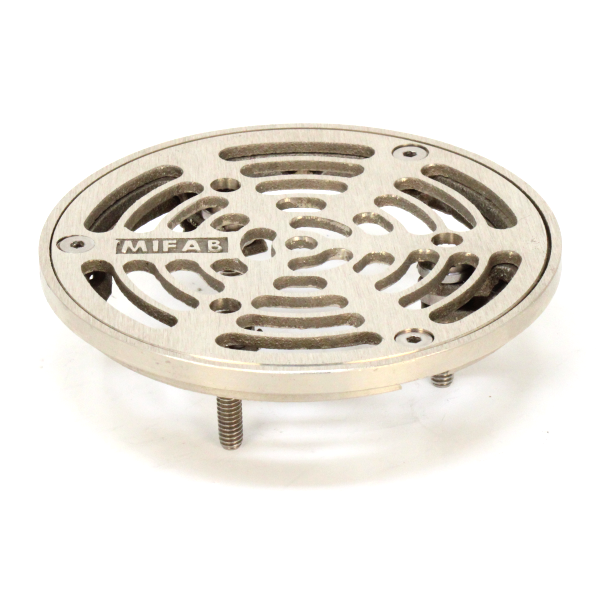

MIFAB® RTS Series Top Set Finished floor / shower drain retro-fit grate and frame with universal bottom ring and top finished rim and grate. Available in 5″ diameter, light duty nickel bronze. Furnished standard with vandal resistant Allen key screws.

Product Function:

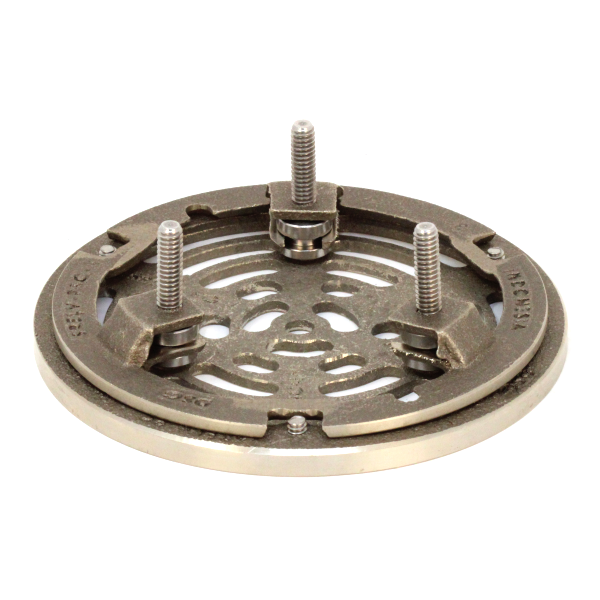

Used as a finished floor / shower drain to receive wastewater. Three screws underneath the grate allow for the rim and grate to be raised after the concrete pour and adjusted to meet the floor finish. Strainer has a 4" N.P.S.M. thread to work with any of MIFAB's floor drain bodies. Universal ring underneath rim and grate will fit into the inside of any 5" round nickel bronze strainer. Remove the existing grate, use the same screws to connect the universal ring to the inside of the strainer and then elevate and adjust side to side the finished rim and grate to the floor for a clean, level finish.

Technical Downloads:

Media:

MIFAB RTS5-1 Retrofit Floor Drain Top Set Grate and Frame: How it Works

 MIFAB RTS5-1 Retrofit Floor Drain Top Set Grate and Frame: Demonstration

 MIFAB RTS5-1 Retrofit Floor Drain Top Set Grate and Frame: ALLSTAR COVERS
