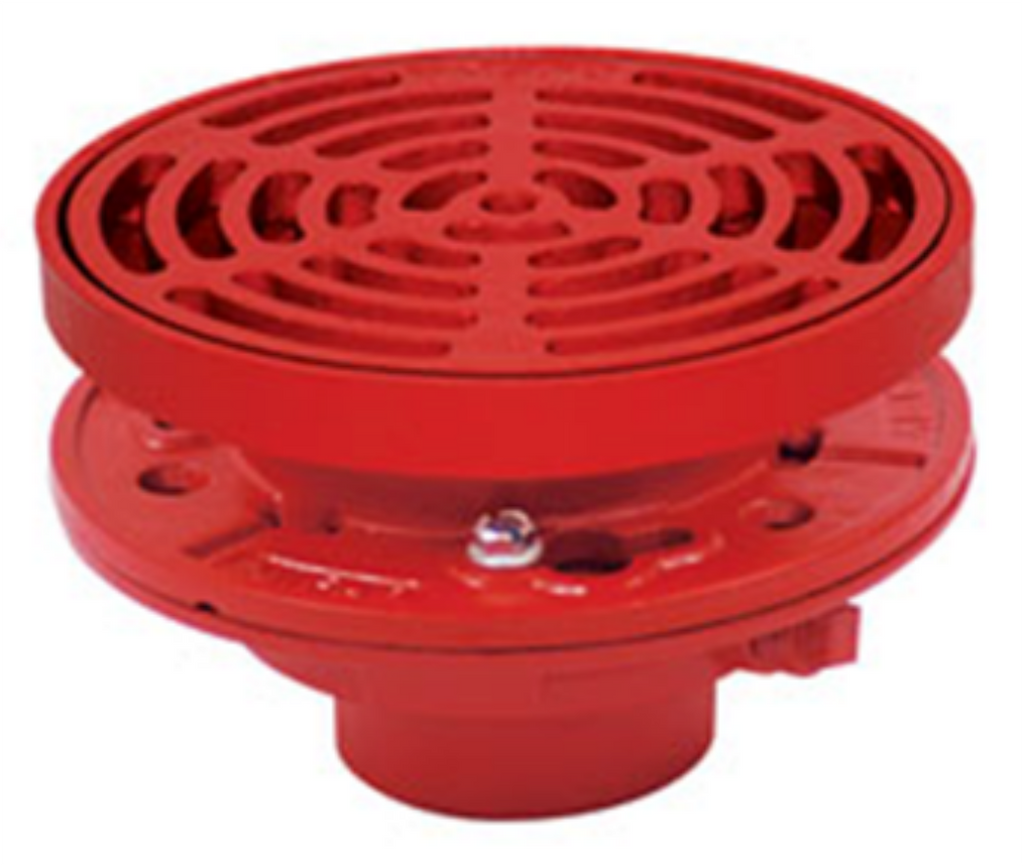

MIFAB F1320-C-G Floor Drain with 9" Round Adjustable Tractor Grate, Membrane Clamp, Oval Funnel, 2" 3" 4" No-Hub.
Product Function:
Used in warehouses, mechanical rooms, parking garages and other membrane finished areas. 9” Round, adjustable tractor grate is used with all types of poured finished floors. Membrane clamp is provided to secure the waterproofing membrane.
Product Specification:

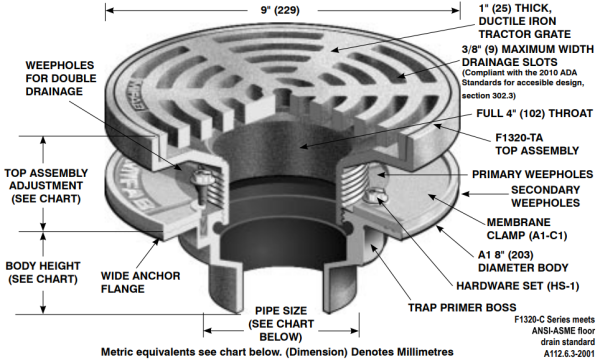

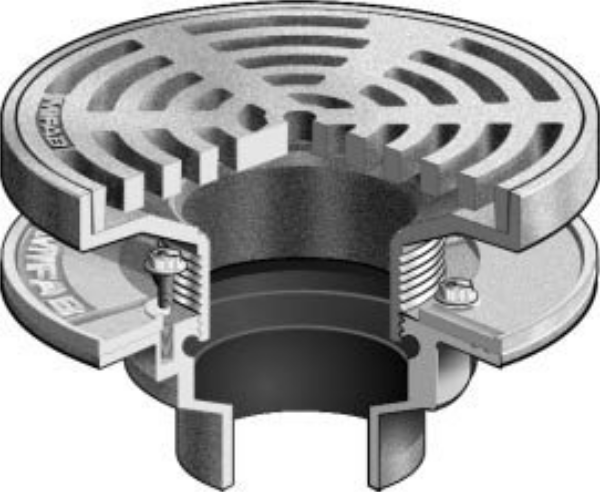

MIFAB® Series F1320-C lacquered cast iron floor drain with anchor flange, cast iron membrane clamp with primary and secondary weepholes for waterproofing membrane, and standard 1” (25) thick, 9” (235) round, (specify material finish) tractor grate. (For nonmembrane floors, use F1320 Series.)
Technical Downloads:
- MIFAB F1320-C: Specification Submittal
