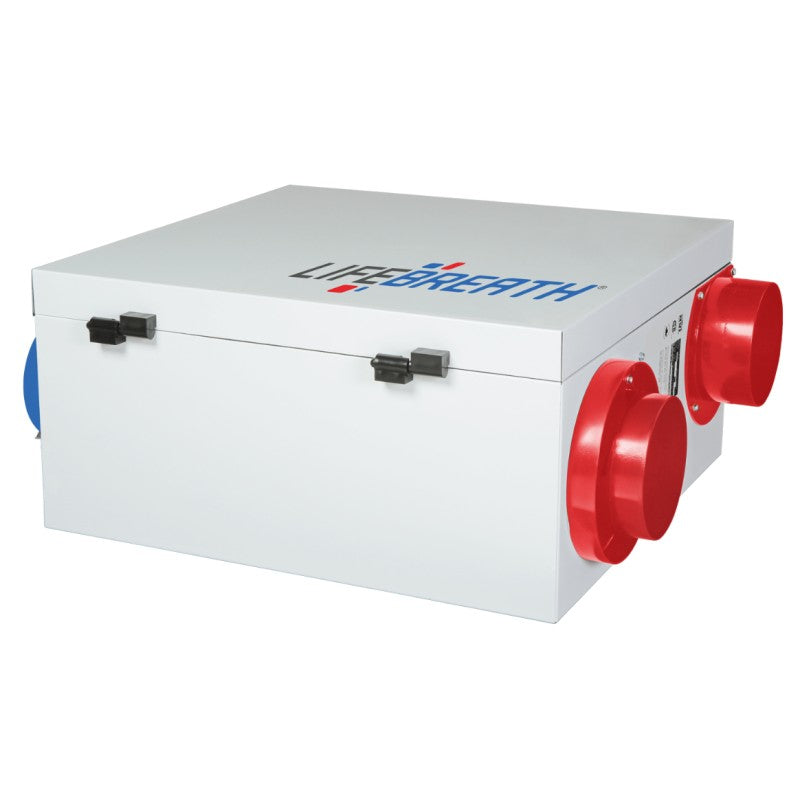

Lifebreath METRO 120ERV Residential Heat Recovery Ventilator (ERV)
Product Overview:
Bringing Compact to a Whole New Level
- Designed for high-rise condos, apartments and townhomes with limited mechanical space
- Low profile, fits in bulkhead and drop ceilings, slim height 9.75 in. • 50-130 CFM operational range
- 3 High speed selections • Brackets included for easy install
- No drains required
- Fan Defrost • Removable motor and electronic assembly for easy maintenance and service
- Swing open e-box cover for quick access to circuit board and DIP switches
- Convenient hinged door – no screws
Engineering Data
- TOTAL RECOVERY ERV CORE Cross-flow energy recover core transfers heat and water vapor between two airstreams. It is easily removed for cleaning or service.
- MOTORS AND BLOWERS Each airstream has an independent centrifugal blower with multiple fan speed operation.
- FILTERS Washable MERV-6 air filters in exhaust and supply airstreams. Upgrade to MERV-13 option available.
- MOUNTING Mounting brackets supplied.
- DEFROST Supply air shuts off to defrost core with warm exhaust air at high speed. Drains not required.
- CASE 20 gauge prepainted galvanized steel for superior corrosion resistance, insulated to prevent exterior condensation.
- INSTALLER SELECTABLE HIGH SPEED SETTINGS Adjustable DIP switches are located on the circuit board, Hi3 is the factory setting. Refer to the installation manual for adjustment instructions.
- ELECTRONICS Main control can be wall mounted in a central location. 3 wire 20 gauge (min.) 100 ft. length (max.)
- OPTION FEATURES Hardwired and mirrored configurations available. See manual for details.
