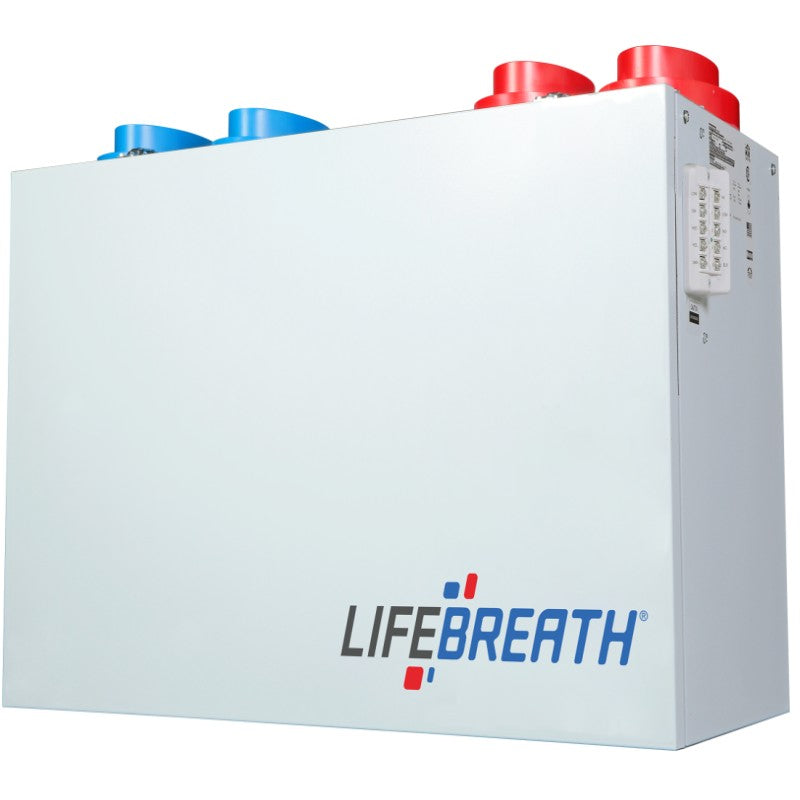

Lifebreath 267 Max Residential Heat Recovery Ventilator (HRV) 267CFM

Lifebreath 267 Max Residential Heat Recovery Ventilator (HRV) 267CFM

Product Overview:

Bringing Compact to a Whole New Level

• ECM Motor. Provides higher output and very low power consumption.
• Digital Wall Control (DXPL02). For easy programmability.
• Aluminum HEX Core. With lifetime warranty.
• Compatible with our wireless timer (DET02).

Engineering Data

• THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE The counter-flow heat recovery core transfers heat between the two airstreams. It is easily removed for cleaning or service.
• MOTORS AND BLOWERS Each airstream has one centrifugal blower driven by a common PSC motor, with multiple fan speed operations.
• FILTERS Washable MERV-6 air filters in exhaust and supply airstreams. Upgrade to MERV-13 option available.
• MOUNTING Four threaded inserts at corners of the cabinet designed to accept the “S” hooks and hanging straps supplied with the unit.
• DEFROST Recirculating damper defrost system.
• CASE Twenty gauge prepainted galvanized steel for superior corrosion resistance. Insulated to prevent exterior condensation. Drain connections 2 - 1/2 in. (12 mm) OD. Balancing ports are located on door.
• INSTALLER SELECTABLE HIGH SPEED SETTINGS Adjustable DIP switches are located on the circuit board, Hi3 is the factory setting. Refer to the installation manual for the adjustment instructions.
• ELECTRONICS The DXPL03 control included with the unit can be wall mounted in a central location of the home. 3 wire 20 gauge (min.) 100 ft length (max.)

Product Features

• 5 speed fan operation on each mode
• 2 speed fan operation (Low/High)
• Continuous low speed fan operation
• Humidity control through adjustable Dehumidistat
• Large digital LCD screen
• Continuous Ventilation
• Continuous Recirculation
• 20 ON/40 OFF
• 10 ON/50 OFF
• 20 ON/40 Recirculation
• 20/40/60 min. High speed override button
• Compatible with 99-DET02 Wireless Timer
• 3 wire connection
• Auto Balance

Technical Downloads:

Lifebreath 267MAX Specification Sheet

Lifebreath 267MAX Homeowners Sheet

Lifebreath 267MAX Installation Manual
