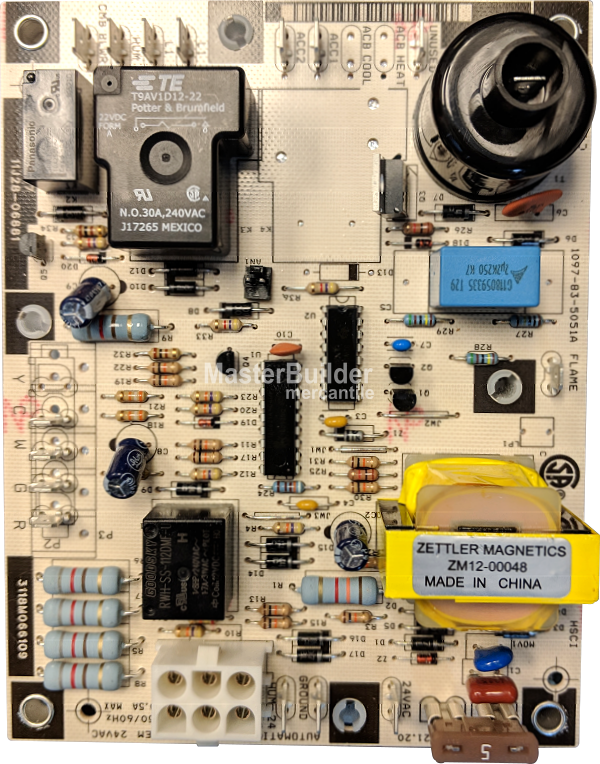

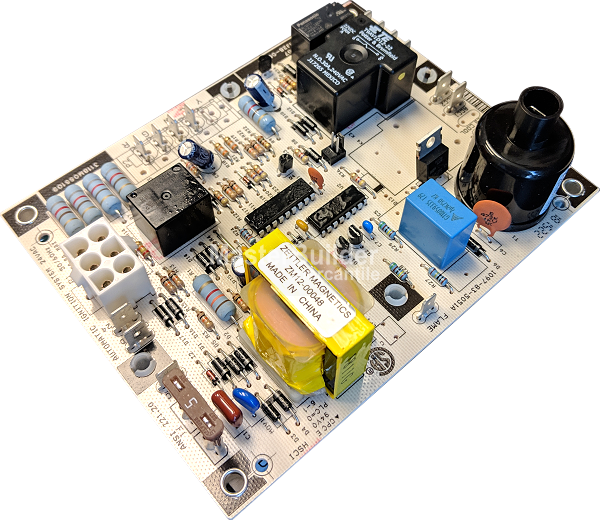

ICP (International Comfort Products) 11J28-06881 OEM Unit Heater Control Board - Replaces J28R06881).
Product Overview
The ICP 11J28-06881 Control Board is the upgraded replacement for the discontinued J28R06881, engineered for International Comfort Products heating systems. This OEM control board improves serviceability with a long diagnostic LED wire while removing unused cooling components for simpler, heating-only operation.
Designed for ICP unit heaters and garage heaters, this replacement part ensures safe ignition, steady performance, and easier maintenance, making it a trusted solution for technicians and homeowners.
Features & Benefits
-
Direct OEM Replacement: Built to ICP standards to replace J28R06881.
-
Heating-Focused Design: Cooling relay removed for efficiency.
-
Enhanced LED Diagnostics: 20” wire for convenient troubleshooting inside or outside the cabinet.
-
Simplified Wiring: ACC1 connections replace the older jumper setup.
-
Long-Lasting Reliability: Ensures efficient performance in ICP heating systems.
Specifications
-
Part Number: 11J28-06881 (Replaces 11J28R06881, J28R06881)
-
Compatible ICP Models: ICP heating-only unit heaters (refer to model compatibility)
-

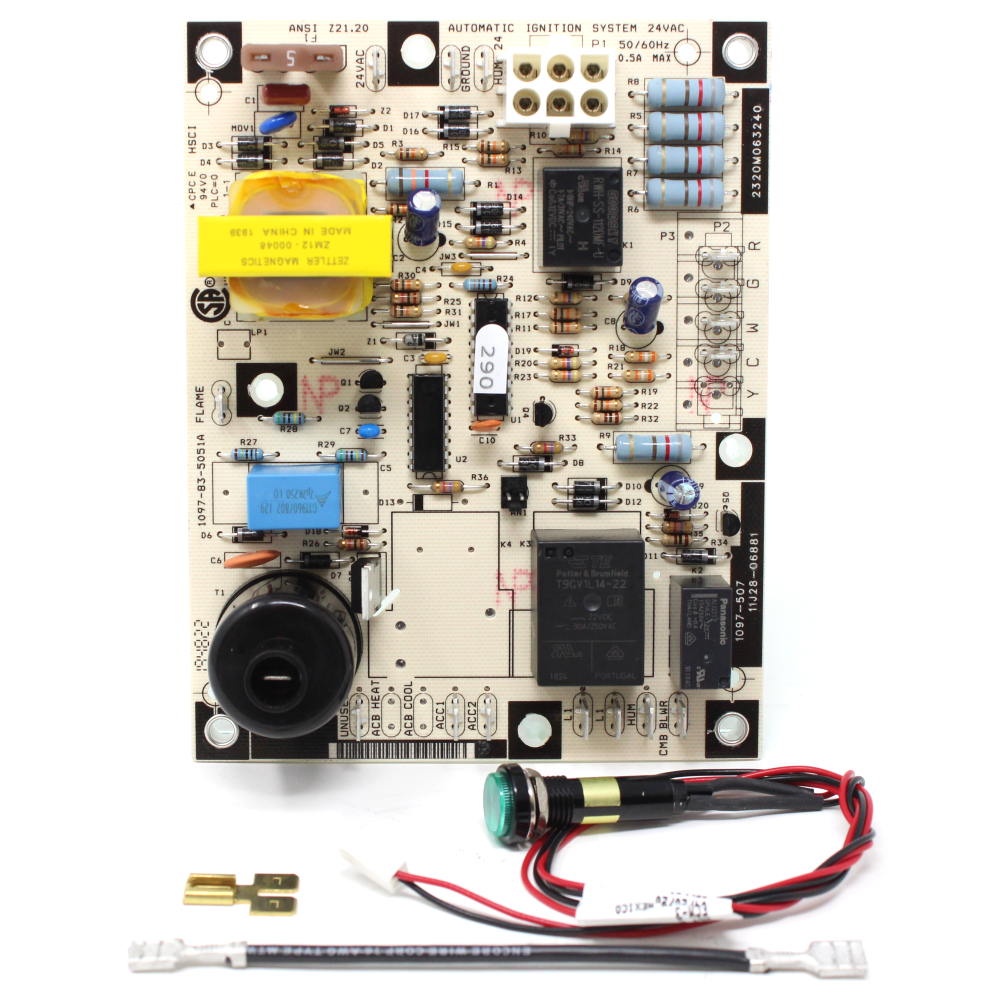

LED Wire: 20” with lock nut for easy placement
-
Terminal Connections: Fan wires to ACC1; jumper not required
-
Application: Exclusive to heating-only ICP systems
Installation Tips
-
Disconnect all power before starting installation.
-
Connect fan motor wires to ACC1 terminals instead of older jumper system.
-
Use the LED externally for easier viewing or internally for compact setups.
-
Position LED away from burner if mounted internally.
FAQs
Q: Is this the correct replacement for J28R06881?
A: Yes, this board directly replaces the older model for ICP units.
Q: Can I mount the LED externally?
A: Yes, the 20” wire allows external mounting for easier diagnostics.
Q: Do I still need a jumper wire?
A: No, the updated design eliminates the jumper connection.
