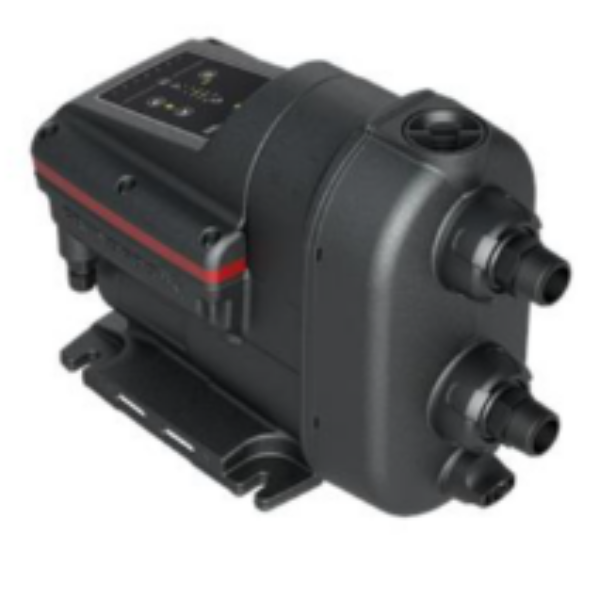

Grundfos 98562818 SCALA2 3-45 Booster Pump 1 Phase 115V 60Hz

GrundfosSKU: GRU-SCALA2

Price:
Sale Price$ 29,235.00 MXN
Stock:
Contact for Availability
Description

Grundfos 98562818 SCALA2 3-45 Booster Pump 1 Phase 115V 60Hz

Grundfos 98562818 SCALA2 3-45 Booster Pump 1 Phase 115V 60Hz

Description:

SCALA2 is a fully integrated, self-priming, compact pump designed for pressure boosting in domestic applications. SCALA2 has integrated speed control which allows maintaining perfect pressure in the taps.

Specifications:

Technical

Rated flow 13.2 US gpm
Rated head 88.59 ft
Head max 147.6 ft
Primary shaft seal CARBON/CERAMIC
Approvals CULUS
Approvals for drinking water cULus NSF372,cULus DW NSF61
Curve tolerance ISO9906:2012 3B
Model A





Materials

Pump housing Composite
Pump NORYL FE1630PW PPE+PS-GS30
Impeller Composite
NORYL FE1630PW PPE+PS-GS30
Material code A







Installation

Range of ambient temperature 32 .. 113 °F
Maximum operating pressure 145 psi
Maximum permissible inlet pressure 87 psi
Type of inlet connection NPT(M)
Type of outlet connection NPT(M)
Size of suction port 1 inch
Size of outlet port 1 inch
Pressure rating for connection PN 10






Liquid

Pumped liquid Water
Liquid temperature range 32 .. 113 °F
Selected liquid temperature 68 °F
Density 62.29 lb/ft³






Electrical Data

Power input - P1 550 W
Rated power - P2 0.603 HP
Main frequency 60 Hz
Rated voltage 1 x 115 V
Rated current 4.9 A
Enclosure class (IEC 34-5) ENCLOSURE TYPE 3
Insulation class (IEC 85) F
Length of cable 6.56 ft
Power plug Type B (NEMA 5-15)
US plug 115V


Others

Net weight 21.3 lb
Gross weight 27.1 lb
Shipping volume 1.52 ft³
Storage temperature range -40 .. 158 °F
Country of origin RS
Custom tariff no. 8413.70.00.30
