Acudor FB-5060-12x12 - 12" x 12" Wall Fire Rated Prime Coated Steel Access Door

AcudorSKU: ACU-FB5060-12x12-WCPC

Price:
Sale Price$ 2,646.00 MXN
Stock:
In Stock
Description

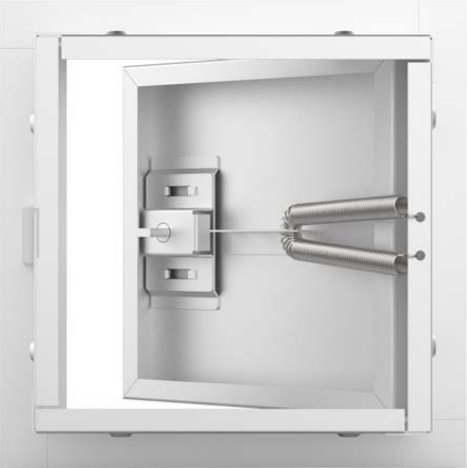

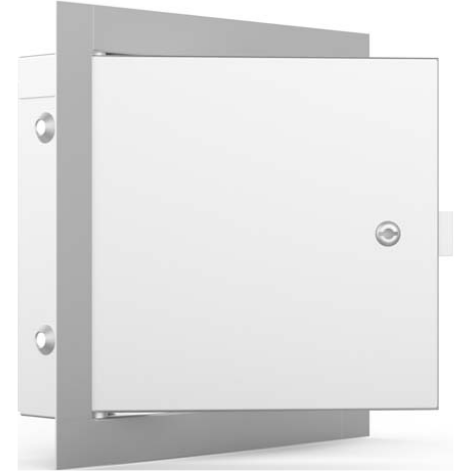

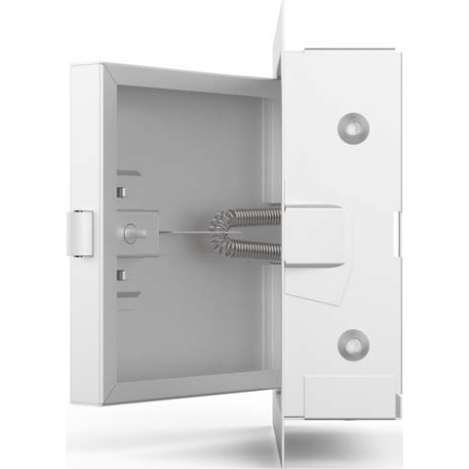

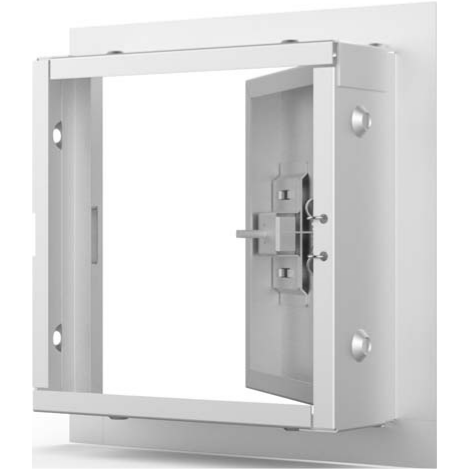

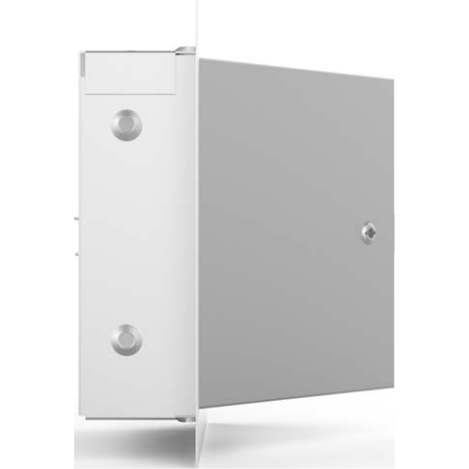

Acudor FB-5060 Wall Fire Rated Prime Coated Steel Access Door

Acudor FB-5060-12x12 - 12" x 12" Wall Fire Rated Prime Coated Steel Access Door

Project Pricing, Discounts, & Custom Sizes Available. Please contact us at info@masterbuildermercantile.com
Features & Benefits:
  • Concealed hinge
  • Self-latching / Self-closing
  • Self-closing & self-latching door mechanism
  • Inside latch release
  • Available with a removable door panel

Door Specifications:

  • Material: 16 gauge door, 16 gauge mounting frame.
  • Flush to frame with reinforced edges, flanged to be 1" wide.
  • Hinge: Concealed.
  • Fire Rating (Walls): UL - 1-1/2 hour "B" label. ULC - 2 hour "B" label
  • Standard Latch: Universal self latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks
  • Finish: 5-stage iron phosphate preparation with prime coat of white alkyd baking enamel.

Application:

  • For WALL applications. For fire rated ceiling applications, see the Acudor FW-5050 Access Door,
  • Designed to maintain continuity in a 2 hour fire rated wall, when temperature rise is not a factor.

    Technical Documentation:

    Acudor FB5060 Wall Fire Rated Prime Coated Steel Access Door Product Page: Click Here.

    Acudor FB5060 Wall Fire Rated Prime Coated Steel Access Door Specification Submittal: Click Here.
